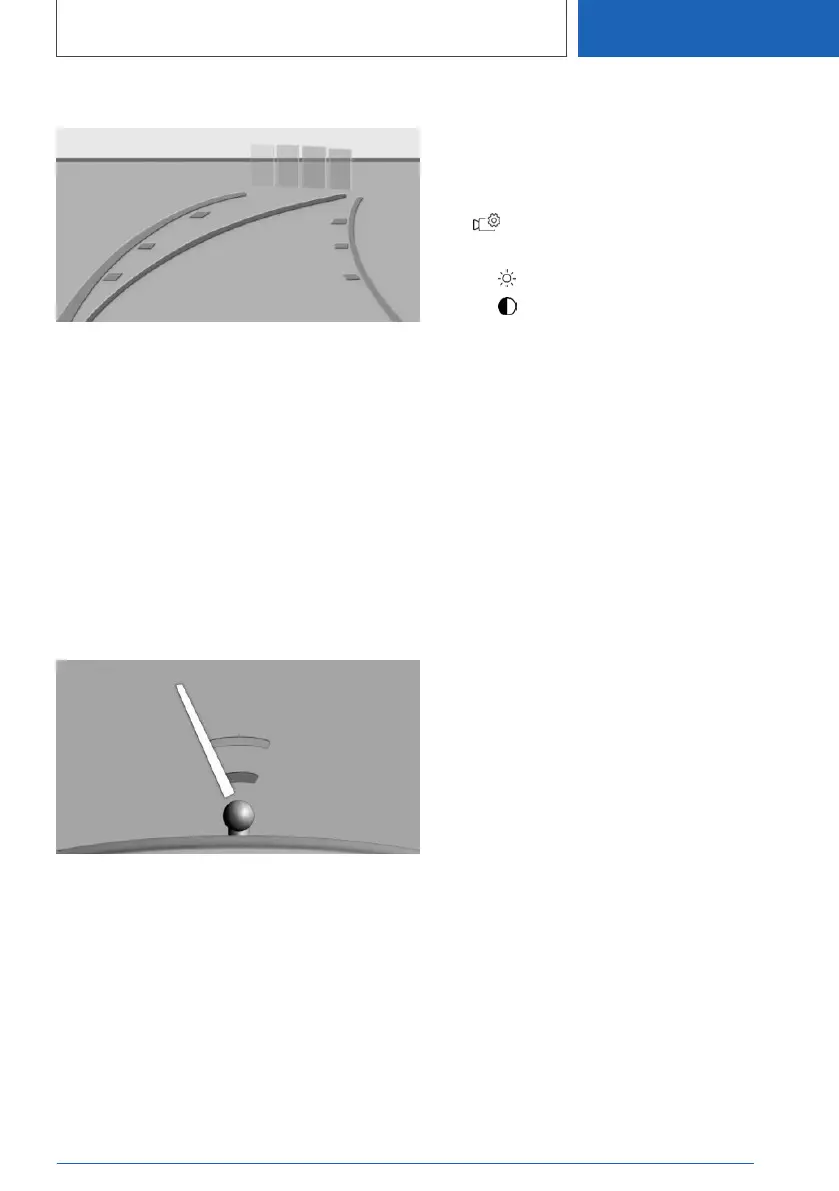

Obstacle marker
Depending on the equipment, obstacles behind
the vehicle are detected by the Park Distance
Control PDC sensors.
Obstacle markers can be shown in the image
from the rear-view camera.
The colour grading of the obstacle markings is
the same as the Park Distance Control PDC
markings.
Zoom to trailer tow hitch
To assist with connecting up a trailer, it is possi‐
ble to zoom in on the area around the trailer tow
hitch.
Two static circle segments show the distance
between the trailer and the trailer tow hitch.
A docking line dependent on the steering angle
assists you in lining up the trailer tow hitch with
the trailer.
When zooming in, remember that the view might
no longer show certain obstacles.
Adjusting brightness and
contrast via iDrive
With rear-view camera switched on:
1. If necessary, tilt the Controller to the right.
2. "Camera picture"
3. Perform the desired setting:
▷ "Brightness"
▷ "Contrast"
System limits
System limits of the sensors
For further information:
▷ Cameras, see page 47.
Deactivated camera
If the camera is deactivated, for example when
the tailgate is opened, the camera image is dis‐
played as grey hatching.
Detection of objects
Very low obstacles and higher, protruding ob‐
jects such as ledges cannot be detected by the
system.
Depending on the equipment, some assistance
functions also take account of Park Distance
Control PDC data.
Observe the notes in the chapter on Park Dis‐
tance Control PDC.
The objects shown in the Control Display may be
closer than they appear. Do not estimate the dis‐
tance to objects based on the display.
Seite 285
Driver Assistance Systems
CONTROLS
285
Online Edition for Part no. 01405A1EA53 - X/20
