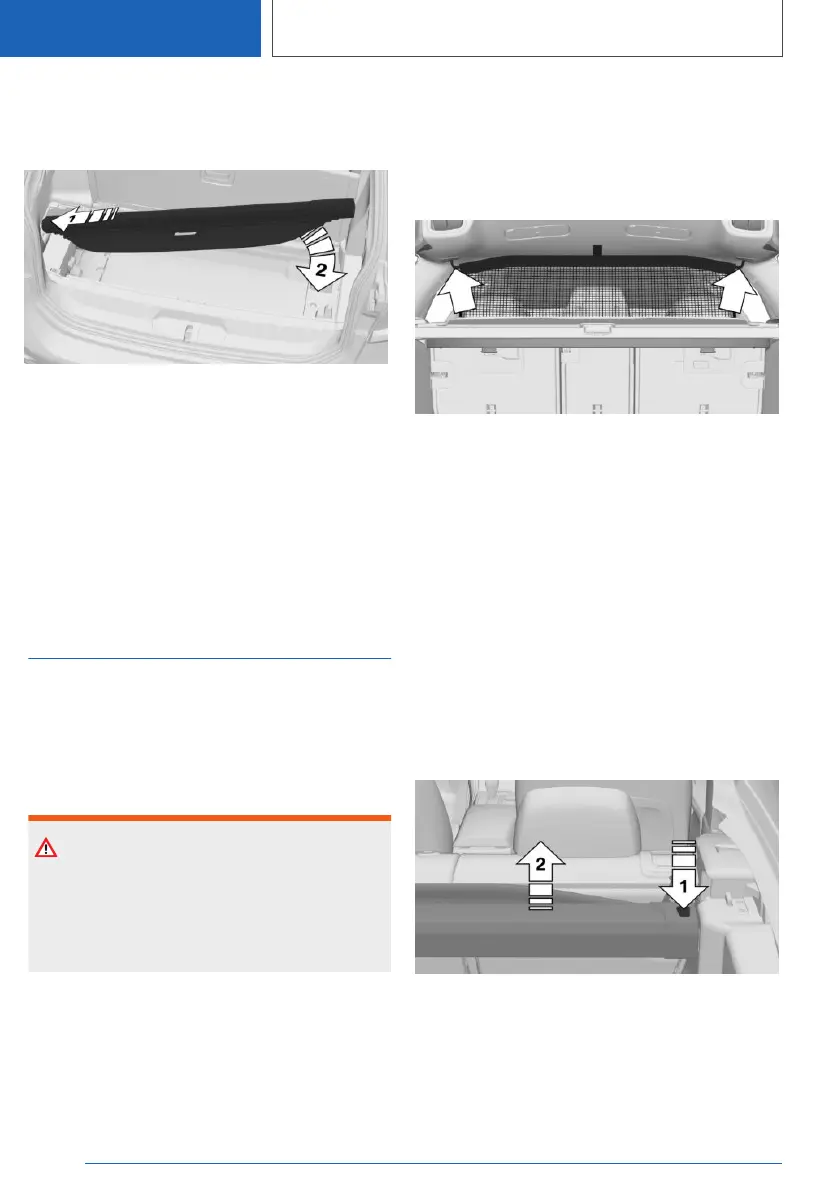

3. Insert the left side of the luggage compart‐
ment cover into the holder under the side
trim panel, arrow 1.
4. Lower the right side of the luggage compart‐
ment cover, arrow 2.
5. Close the storage compartments.
Inserting
Slide the case for the luggage compartment
cover into the mounts on the side trim panel.
Make sure that the case audibly engages on
both sides.
Luggage net
General
The luggage net can be installed in two different
positions in the vehicle.
Safety note
WARNING
Injuries or damage can occur when the luggage
net rolls closed rapidly. There is a risk of injury
or material damage. Do not permit the luggage
net to roll rapidly closed.
With the rear backrest upright
1.
Fold open rear covers on the headliner until
they audibly engage.
2. Grip the loop and pull the luggage net out of
its case.
3. Insert the rods on both sides upwards into
the brackets on the headliner and push for‐
wards.
When the luggage net is no longer needed, re‐
verse the procedure.
With the rear backrest folded
down
Moving the luggage compartment
separating net forwards
1.
Fold the rear seat backrests forwards.
2. Remove the luggage compartment cover.
Removing, see page 333.
3. Press the button, arrow 1, to unlock the case
of the luggage compartment separating net
at both sides.
4. Remove the case upwards from both side
brackets, arrow 2. Take care not to get the
case jammed.
Seite 334
CONTROLS
Luggage compartment
334
Online Edition for Part no. 01405A1EA53 - X/20
