Connecting
Charge point flap

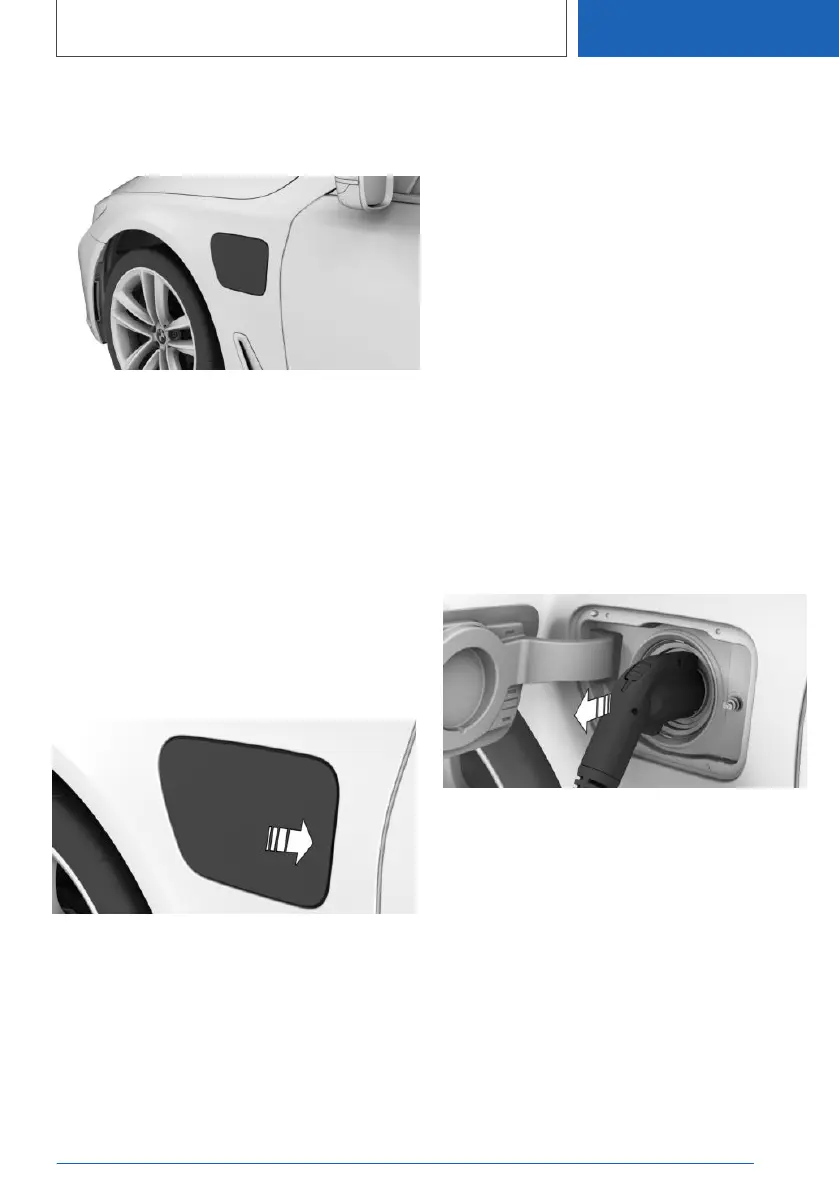

The charge point flap is located on the left of the
vehicle.
Keep charge point flap clean and clear.
Keep the charge point flap closed when the
charge point is not being used.
Connecting a charging cable
To connect, engage selector lever position P,
deactivate drive-ready state and unlock the vehi‐
cle. Apply parking brake if necessary.
1.
To open the charge point flap, push on the
upper edge, arrow. The charge point flap
opens.
2. Connect the mode 2 charging cable to the
domestic socket outlet or the mode 3 charg‐
ing cable to the connection point on the AC
charging station.
3. Position the charging cable connector on the
charging socket and push it in as far as it will
go.
Removing
General
During the charging process, the charging cable
is automatically locked. Unlock the charging ca‐
ble before removing.
Before pulling off, clean the area between the
charge point flap and charging connection, for
example to remove snow.
Removing a charging cable
1. Press the release button on the vehicle key or
operate the door handle.
Charging process is interrupted.
The charging cable is unlocked for a short
time.
2. Hold the charging cable by the gripping
areas.
3. Remove charging cable from the charge
point, arrow.
4. Press on the charge point flap until it en‐
gages.
5. Fit cover on charging cable connector if nec‐
essary.
6. If necessary, disconnect the mode 2 charging
cable from the domestic socket outlet or the
mode 3 charging cable from the connection
point on the AC charging station.
7. Store charging cable.
Plug in a fixed charging cable at a charging
station in the place provided for it.
