16
E46iCCVM/ST039/3/21/00

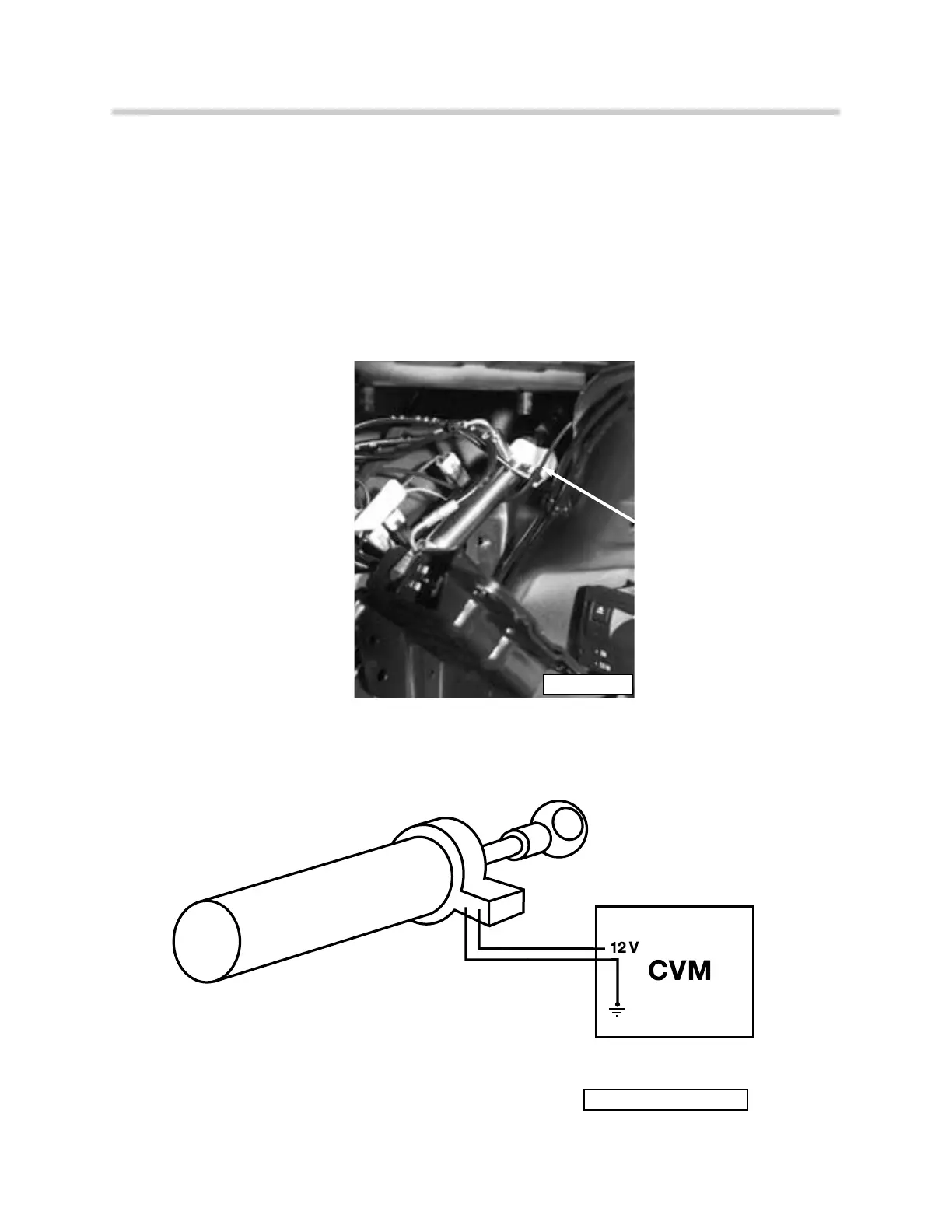

Storage Compartment Cover Hall Sensor
The storage cover hall sensor switch is mounted on the left side storage cover hydraulic
cylinder in the trunk. It receives power and ground from the CVM. The switch provides a
high signal input when the storage cover is fully open.
The CVM uses the signal from the switch for top cover positioning and switching operation
during soft top lowering and raising. The CVM uses this input signal as a switching point
for activating the tension bow solenoid during top lowering or activation of the main pillar
solenoid during top raising.
Cover Hall Sensor
ART-E46ICCVMRAMROD
ART-KT-5355
TTrruunnkk--LLeefftt SSiiddee
