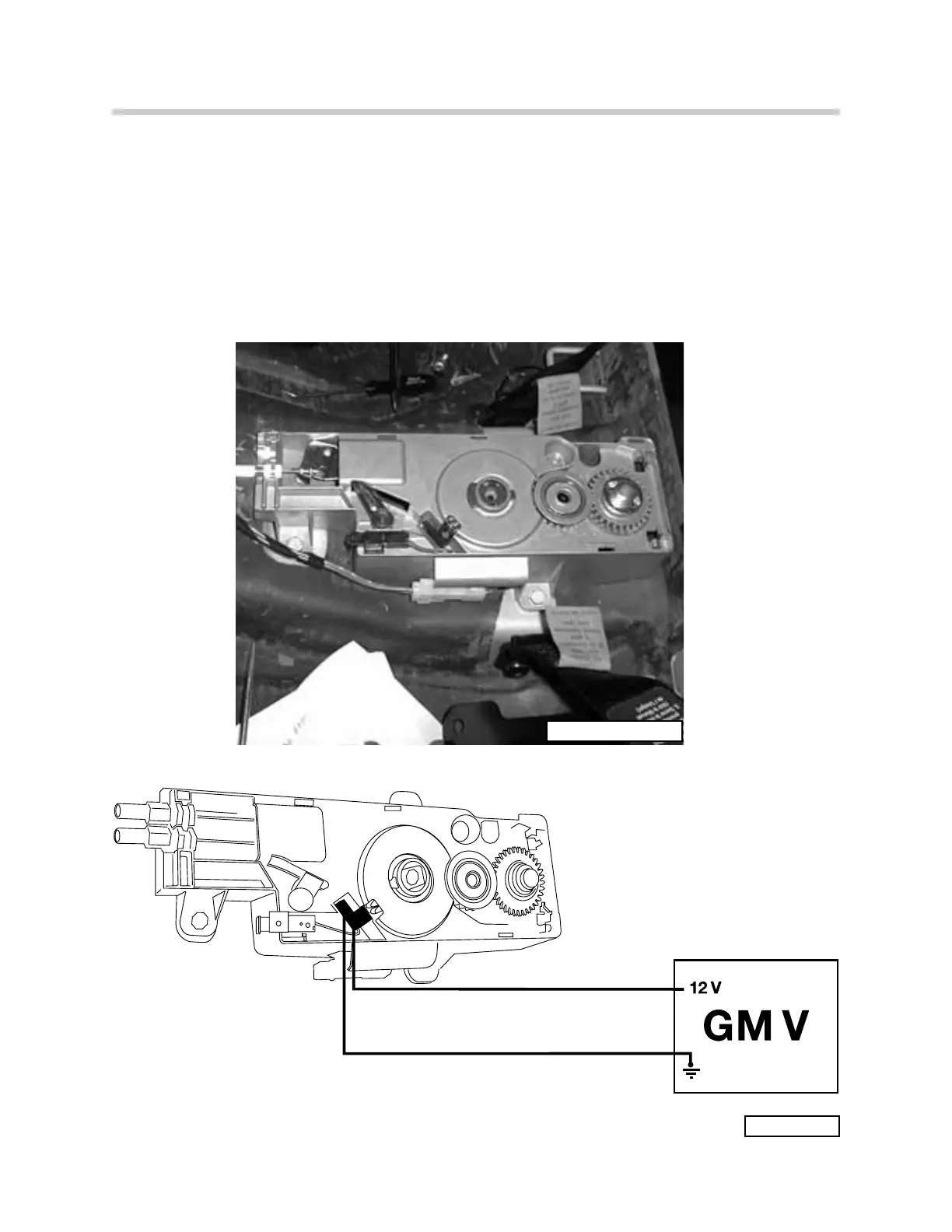

Storage Compartment Cover Motor Hall Sensor
The storage cover motor hall sensor is mounted on the gear drive assembly of the motor.
It receives power and ground from the general module and provides a high signal input
when the motor has unlocked or locked the storage cover.
The GM uses this input to switch the unlock motor OFF. Additionally, the GM will electrical-
ly lock the trunk any time the storage cover is unlocked. The CVM receives a signal over
the K-bus of the unlock/lock status of the storage compartment cover.
Cover Motor Hall Sensor
E46ICGM12V.
ART-COVERLOCK
