• CVM activates hydraulic pump and switches the tension bow solenoid to raise the ten-
sion bow.
• Tension bow is raised to its vertical position - signal from angle hall sensor
• CVM signals GM to unlock storage compartment cover.
• Storage compartment cover unlocked - signal from motor hall sensor - storage cover lock
motor is switched off
• CVM receives status of cover lock from GM over K-bus - switches storage cover sole-
noid
• Storage cover raised to its open position - signal from cover hall sensor
• CVM switches to the lowering solenoid for the tension bow - top starts lowering into stor-
age compartment.
• CVM switches the main pillar solenoid - top is fully lowered into storage compartment

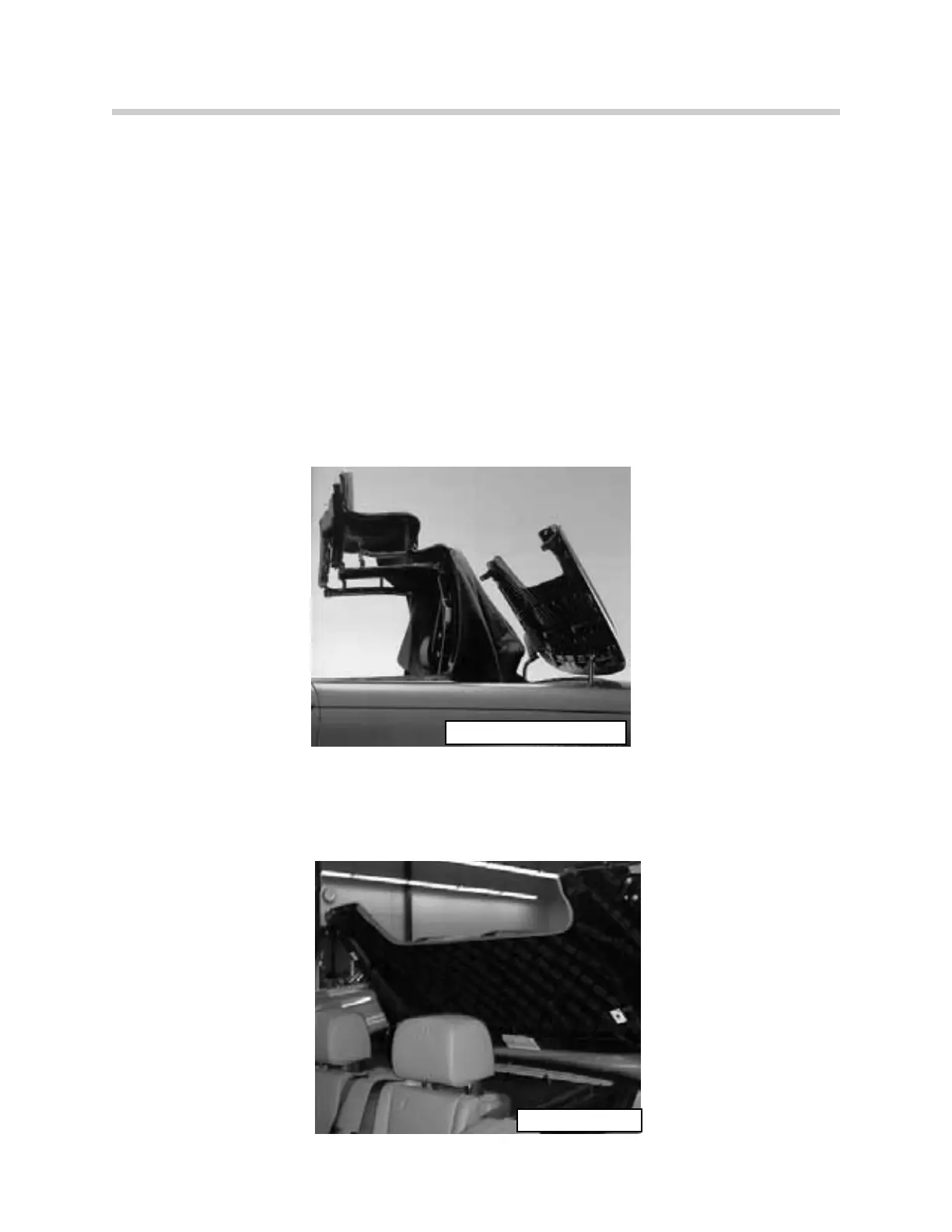

54E46TOPLOWERING0000
ART-TOPDOWN3
