25
E46iCCVM/ST039/3/21/00
• CVM switches solenoid for top cover - cover is lowered - signal from storage cover lock
hall sensors.
• CVM signals GM to lock storage compartment cover.
• GM activates cover lock motor - cover is pulled closed by lock assemblies.
• GM switches off lock motor - signal from motor hall sensor.
• CVM switches off hydraulics and LED - signal from cover lock motor hall sensor.
Top Raising Sequence
Top Switch Pressed - “Closed”
• Windows are lowered (if closed) - CVM to GM
• Storage compartment cover is unlocked - CVM to GM
• Storage cover is opened
• Top is raised out of storage compartment
• Tension bow is raised
• Storage cover is closed
• Storage cover is locked - CVM to GM
• Tension bow is lowered
• Top is lowered and locked to cowl
• Windows are closed - if switch is held

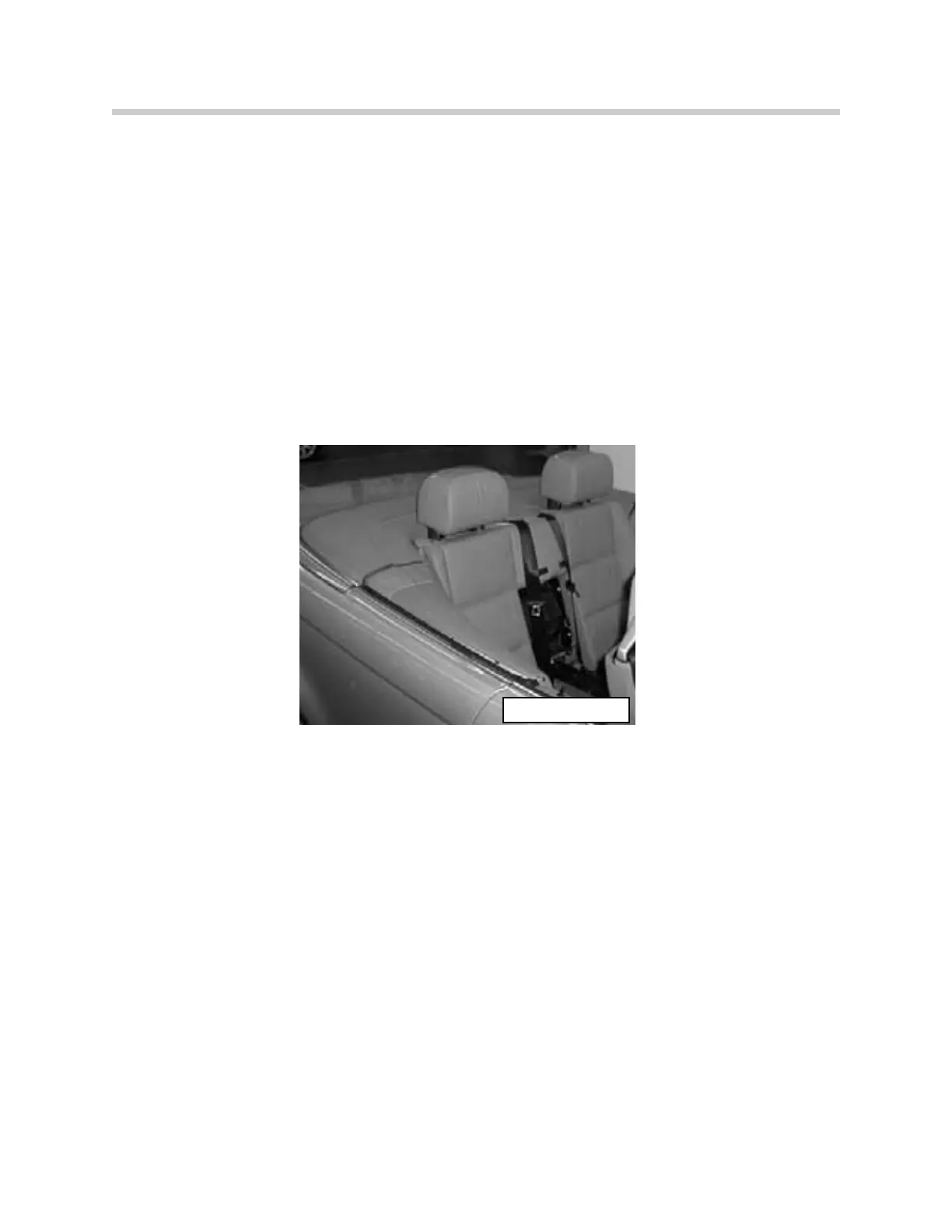

ART-TOPDOWN4
