BMW E46 - Diagnosis, Coding, and Memory

37
E46 Climate Control
Workshop Hints
Diagnosis

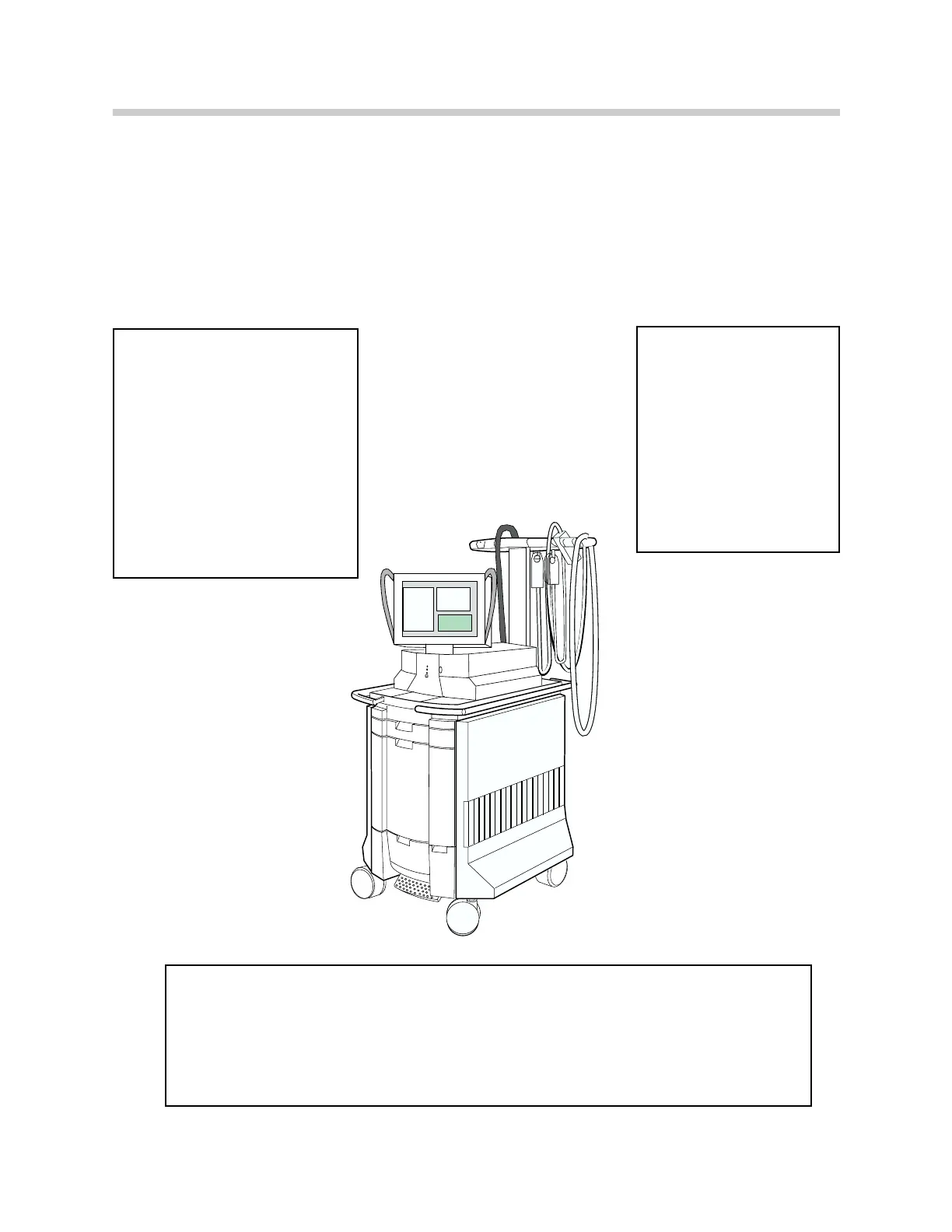

Diagnosis of the E46 IHKR system is carried out using the DISplus or MoDiC. The IHKR is
connected to the diagnostic bus via the K-bus/Kombi connection. The system uses the
E46 test module driven diagnostic concept for troubleshooting faults with the system.
BMW DIS
B
M
W
D
I
S
BMW DIS
B
M
W
D
IS
DSC III
kjhsdfkhsdflkhsdlkfjhlkjghkg
lkdkfljdflkjdsfljdslfjldskjflkjdflk
ldsflsdfklhdsfhsdfhsdkhfkhsdf
kldjfkljdfkjdskfkjdskfjkljdfkldsfk
kjsdfkljsdfkdsfkjdsfkljsdfkjds
ldjsfklkjsdfkldsjfkdsjfkdsfkdfklk
Control Unit Functions:
Expert mode diagnosis available at
any time during troubleshooting. To
enter: press the Control Unit
Functions button at the lower right
corner of the screen.
The contents are:
• Identification
• Clear Fault Memory
• Read Fault Memory
• Component Activation
• Status Requests
Service Functions:
Provides access to special-
ized test modules used as
post repair procedures. To
enter:
• Function selection
• Service Functions
• Body
• Heater- A/C control
Deactivate transport-lock
function
Test Modules: Faults with the E46 IHKR can be diagnosed using fault or symptom driven test
modules. To begin diagnosis:
• Perform the Short Test
• Select a vehicle symptom from the Symptom Selection page
• Select a test module from the Test Plan page
• Press the Test Schedule button
Test module are written in the E46 Diagnostic Concept.
