E88 Complete Vehicle
AM/FM Antennas

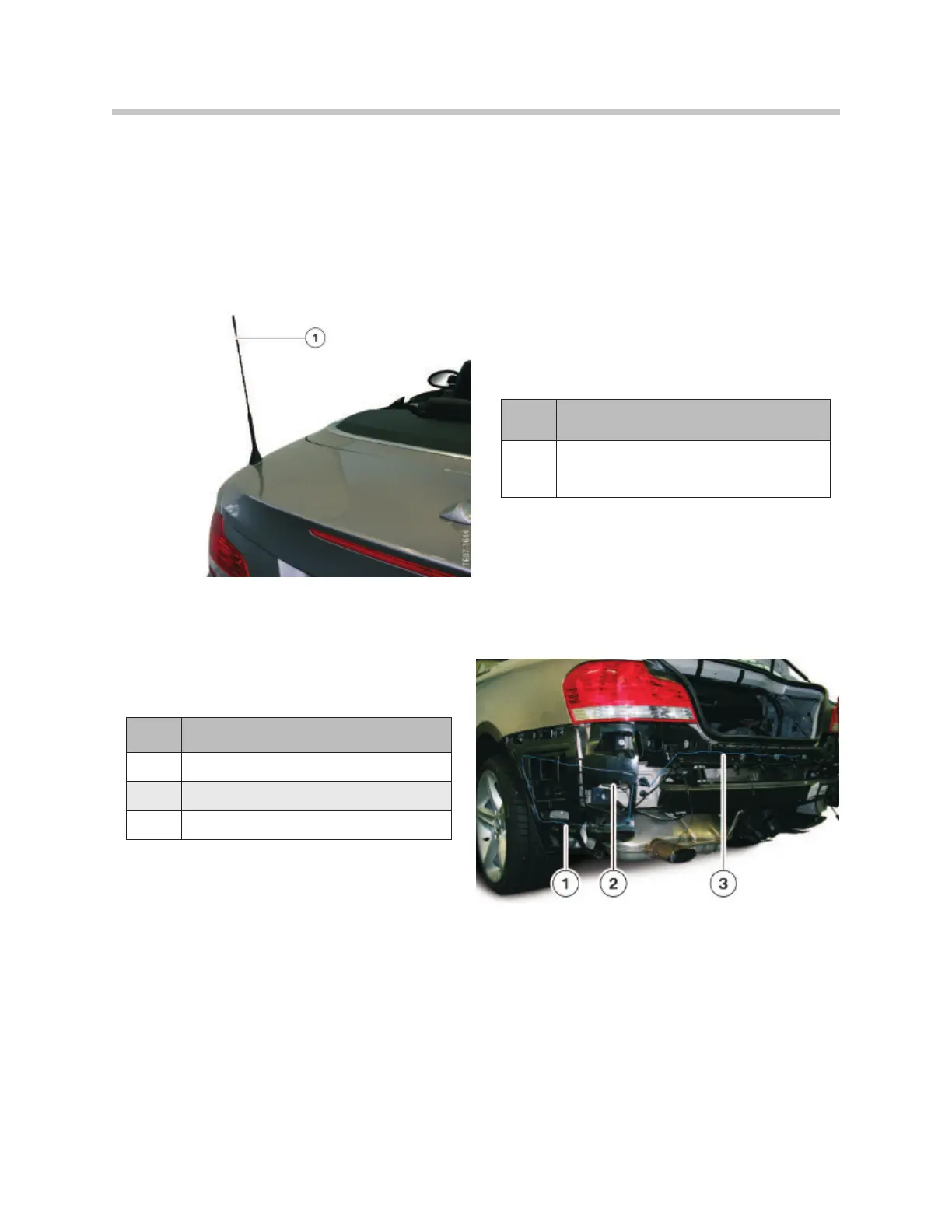

Three FM antennas (FM1, FM2, FM3) and one AM antenna are switched via an FM
diversity module and are used for radio reception in the E88.
The AM and FM1 antennas are integrated into the mast antenna. The FM2 and FM3
antennas are located under the rear bumper trim. The antenna amplifier for the FM2 and
FM3 antennas are located in the diversity antenna module at the rear left of the luggage
compartment.
Index Explanation
1
Mast antenna (AM, FM1 and
telephone antenna
Index Explanation
1
FM3 antenna
for VHF reception
2
Telematics antenna
3
FM2 antenna for VHF reception
