Antennas for Telephone and Telematics
The following antennas are required for telephone and telematics functions:
• Telephone antenna
• Telematics antenna
• SOS antenna
• GPS antenna
• Bluetooth antenna for internal
communication
The telephone antenna is located in the
mast antenna.
Telematics Antenna
The telematics antenna is located on
the rear bumper under the left tail light.
On vehicles equipped with the BMW Assist
option, the telematics antenna is connect-
ed directly to the telematics control unit
TCU and is used solely for data transmis-
sion relating to telematics functions.

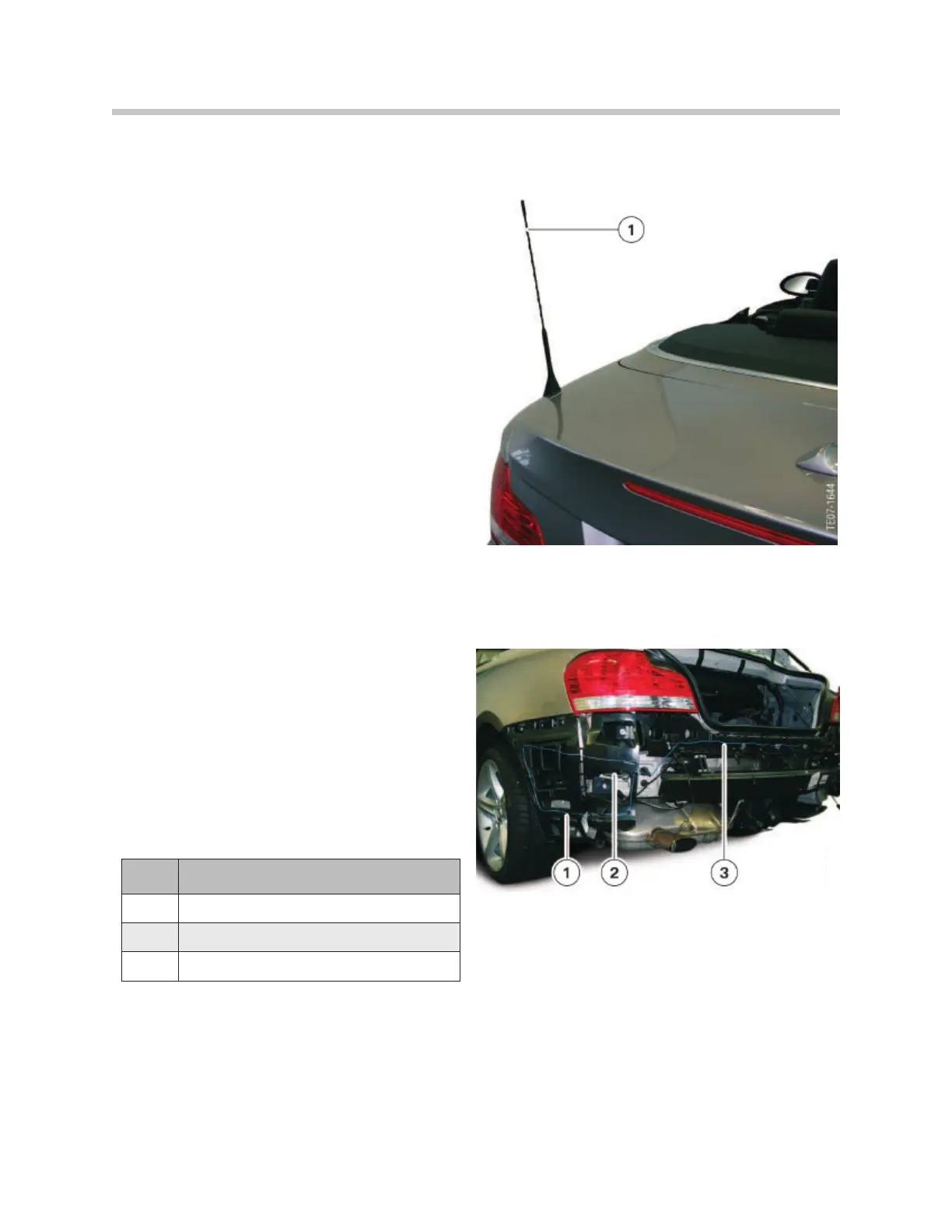

The telephone antenna is integrated
into the mast antenna
FM antenna behind the bumper trim
(Left rear bumper view)
Index Explanation
1
FM3 antenna
f
or
VHF reception
2
T
elematics antenna
3
FM2 antenna for VHF reception
