E88 Complete Vehicle
Index Explanation Index Explanation
1
Incremental sensor in the drive unit for the wind-
shield co
wl locking system
6
Hall sensor, main pillar raised
2
Hall sensor, windshield cow panel locked
7
Hall sensor, main pillar stowed
3
Hall sensor, roll bar stowed
8
Switch for the trunk partition
4
Hall sensor, roll bar raised or
“Clamping bar positioned”
9
Hall sensor
, Top storage
compartment
lid opened
5
Hall sensor, roll bar unclamped
10
Hall sensor, top storage
compartment lid locked

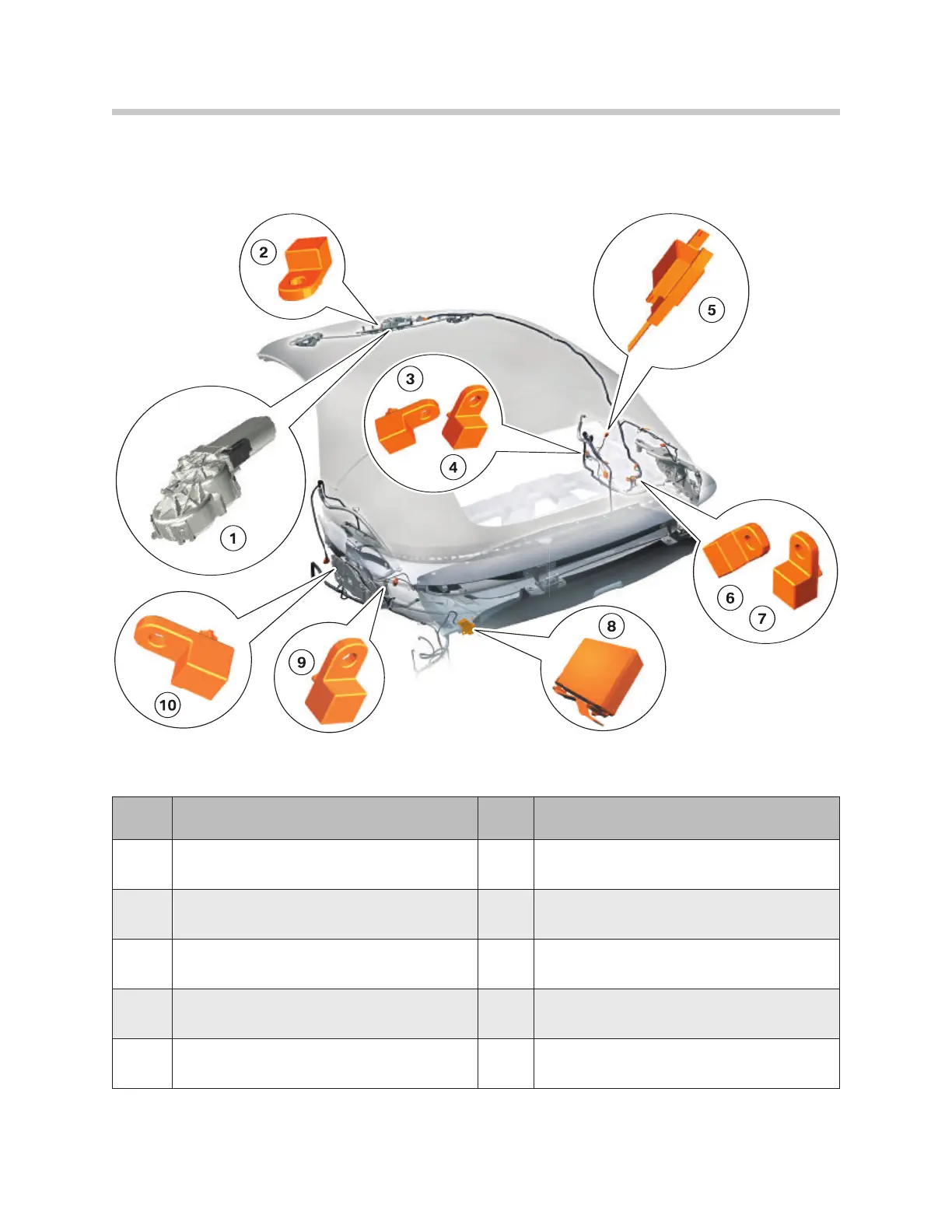

Convertible top position sensor component location
