E85 Information/Communication
- 8 -
- System diagram

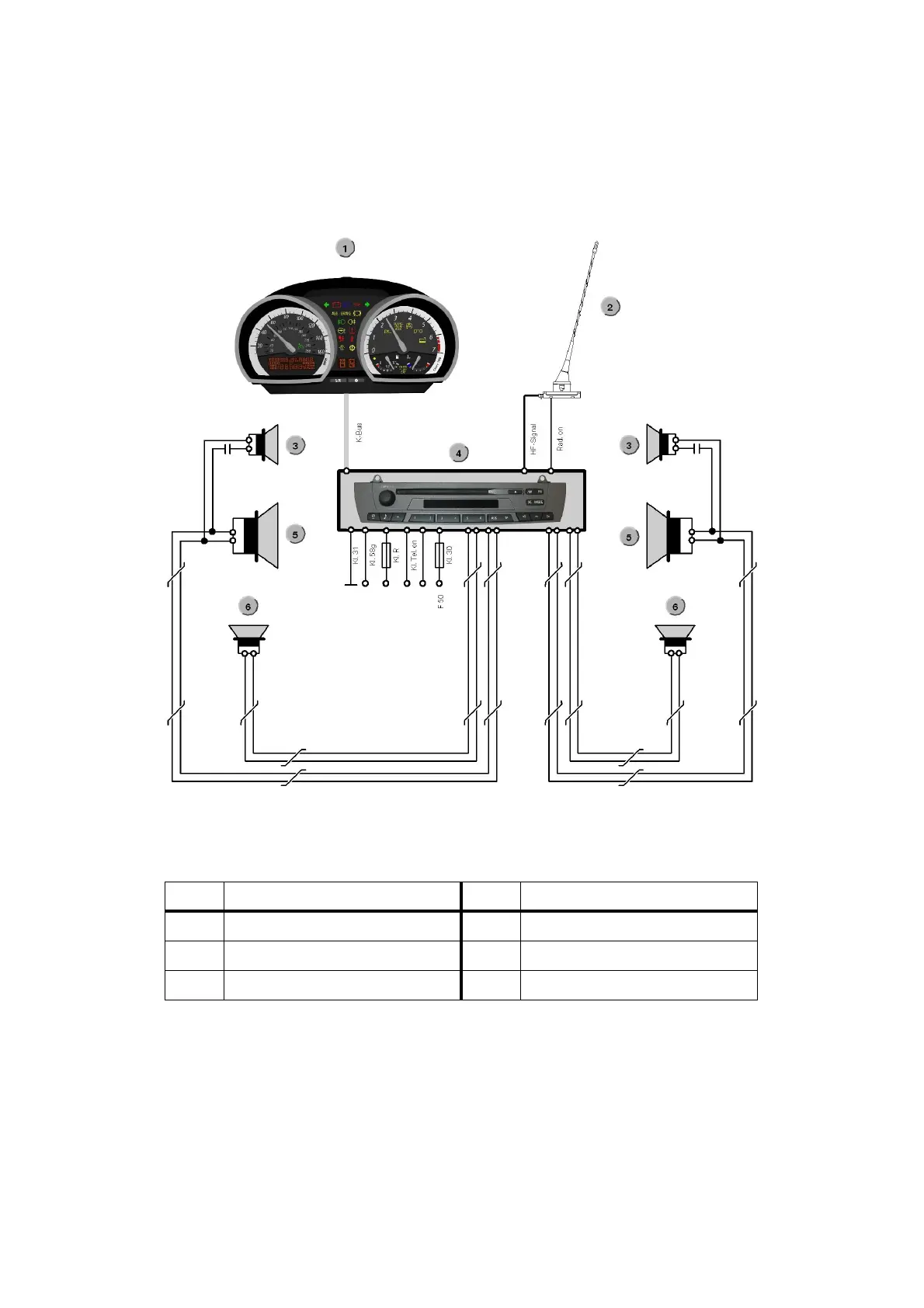

Fig. 7: System diagram, radio
Index Explanation Index Explanation
1 Instrument cluster 4 BMW radio-CD
2 Radio aerial 5 Low-range speaker, front
3 High-range speaker, front 6 Mid-range speaker, rear
KT-10008
