BMW E85 - System Circuit Diagram

E85 Information/Communication
- 61 -
System circuit diagram

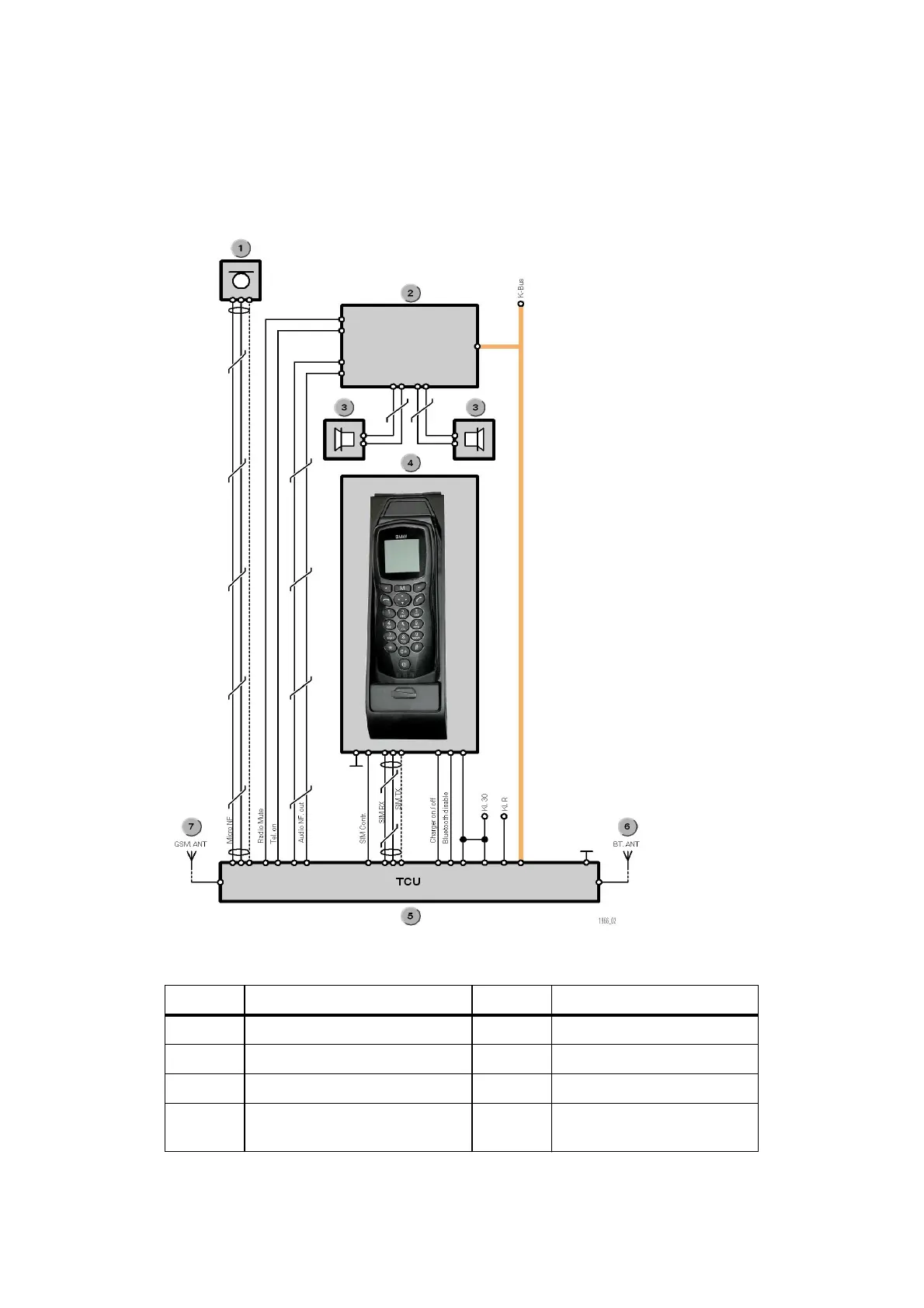

Fig. 41: E85 System circuit diagram for "Professional" car phone
Index Description Index Description
1 Hands-free microphone 5 Telematic Control Unit TCU
2 Radio 6 Bluetooth aerial
3 Speakers 7 GSM aerial
4 Eject box with cordless
handset
KT-10590
