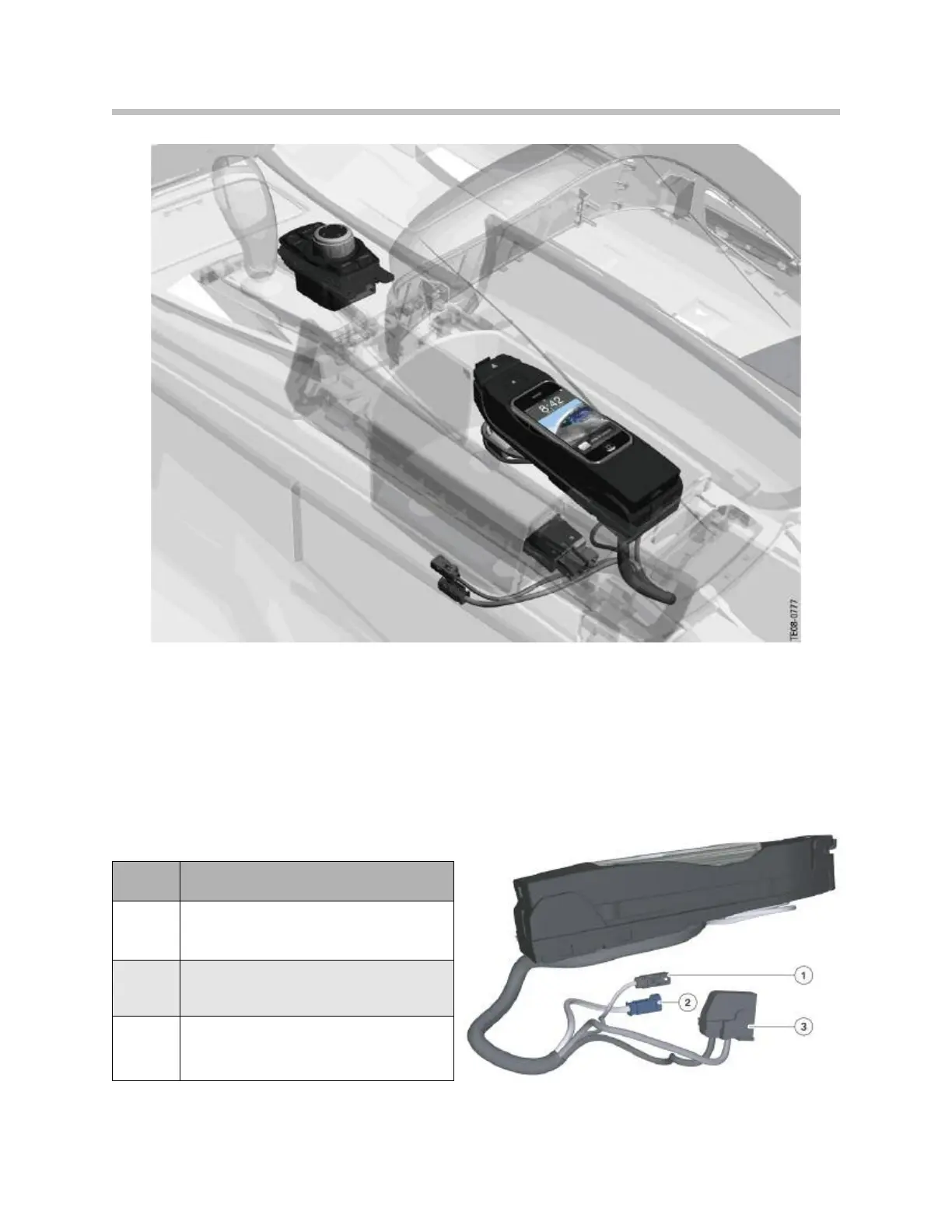

The following illustration shows the arrangement of the individual components on the

base plate for the Smartphone Integration.

iPhone with snap-in cradle adapter on the base plate for Smartphone Integration

Index Explanation

Base plate connection to roof antenna

(black connection)

USB connection from

base plate to USB hub

(blue connector)

18-pin plug connector:

(power supply, cradle-on,

AUX-AF signals)

101

F01 Audio Systems
