Working on Electronic Components
The following requirements must be observed when working on electronic components
on the Car Information Computer.
• The work must be performed on a conductive and grounded workbench
(special tool 12 7 192 is used for this purpose).
• The grounding cable must be connected to a secure grounding point (water pipe,
heating pipe, electric socket ground).
• The person carrying out the work must first put on the grounding cuff in order to
ground himself before removing the components from the packaging.
• The electronic components are placed on the anti-static mat which is also
connected to a grounding cable.
57
F01 Audio Systems

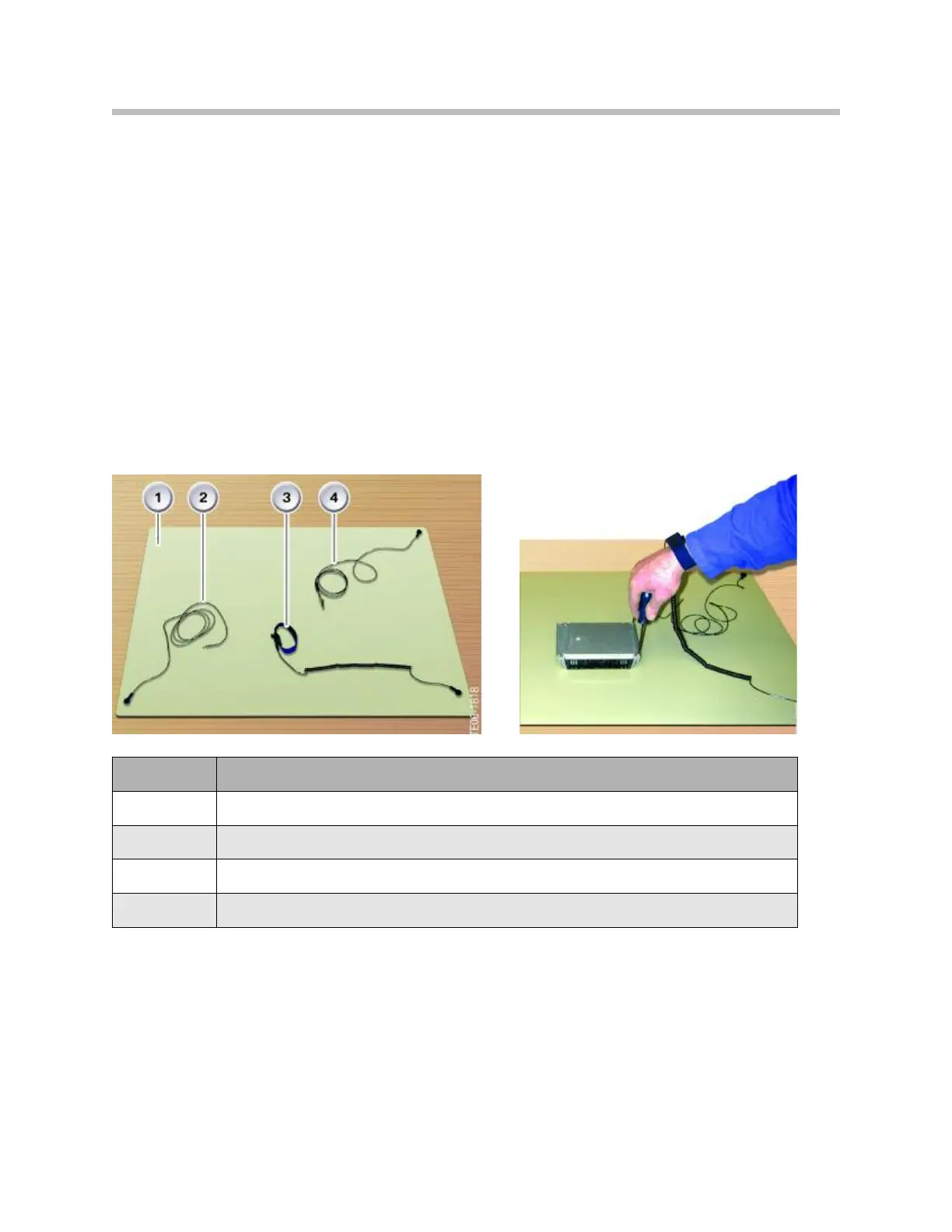

Anti-static mat Special tool 12 7 192
Index Explanation
1
Anti-static mat
2
Grounding cable for the mat
3
Anti-static cuff
4
Grounding cable for the component
