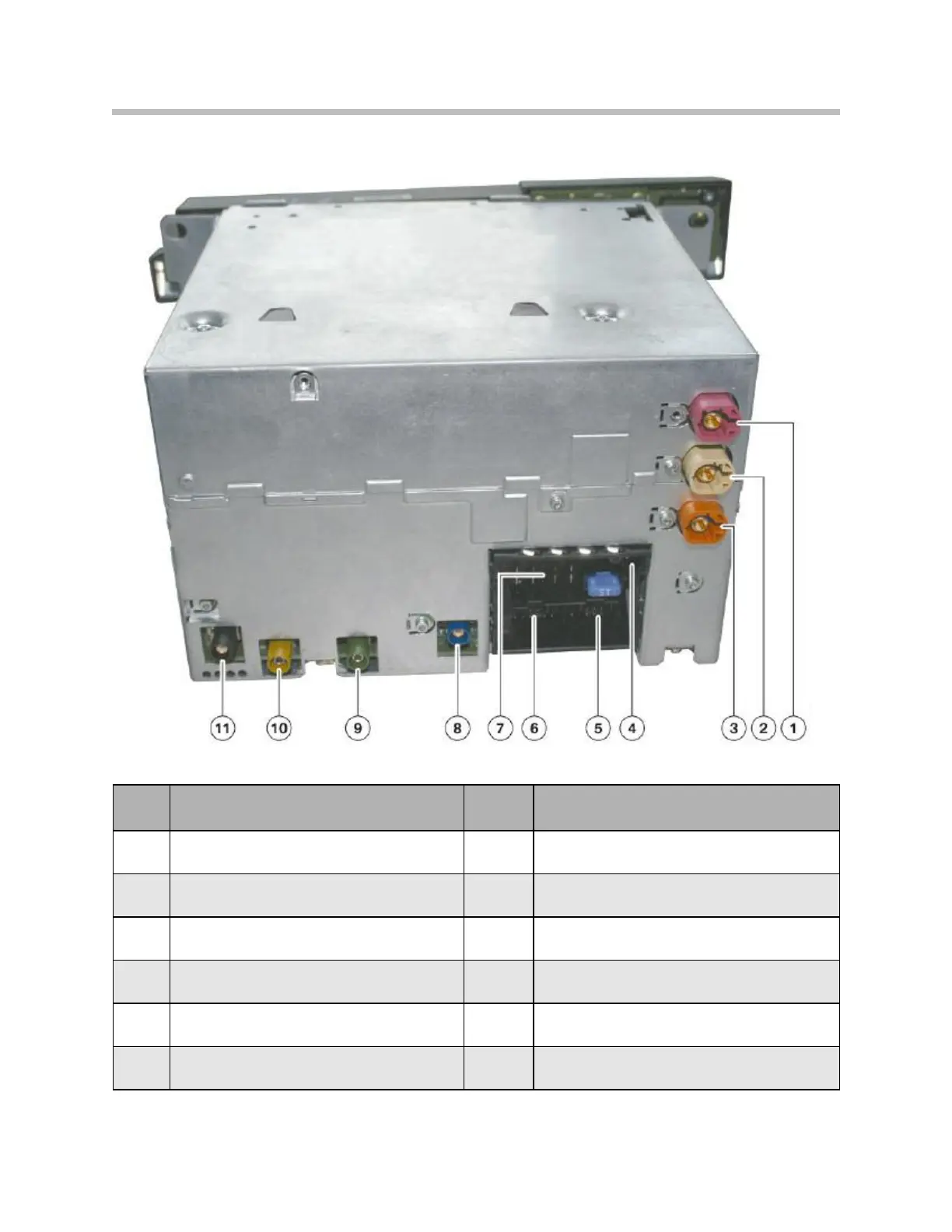

Index Explanation Index Explanation
1
LVDS signal for the CID;
violet connector
7
16-pin connector (K-CAN, audio output AF;
power supply, Rad-on signal)
2
USB connection for glove compartment beige
connector
8
GPS antenna signal
Blue connector
3
Ethernet connection (future expansion for rear
seat entertainment) orange connector
9
Not for US
4
MOST connection
10
Not for US
5
12-pin connector; right-hand chamber
(Ethernet, TEL_AF, AUX-In)
11
AM/FM tuner signal
black connector
6
12-pin connector; left-hand chamber (video
input signals - CVBS)
Front view of IHKA/audio control panel of the F01/F02
54
F01 Audio Systems
