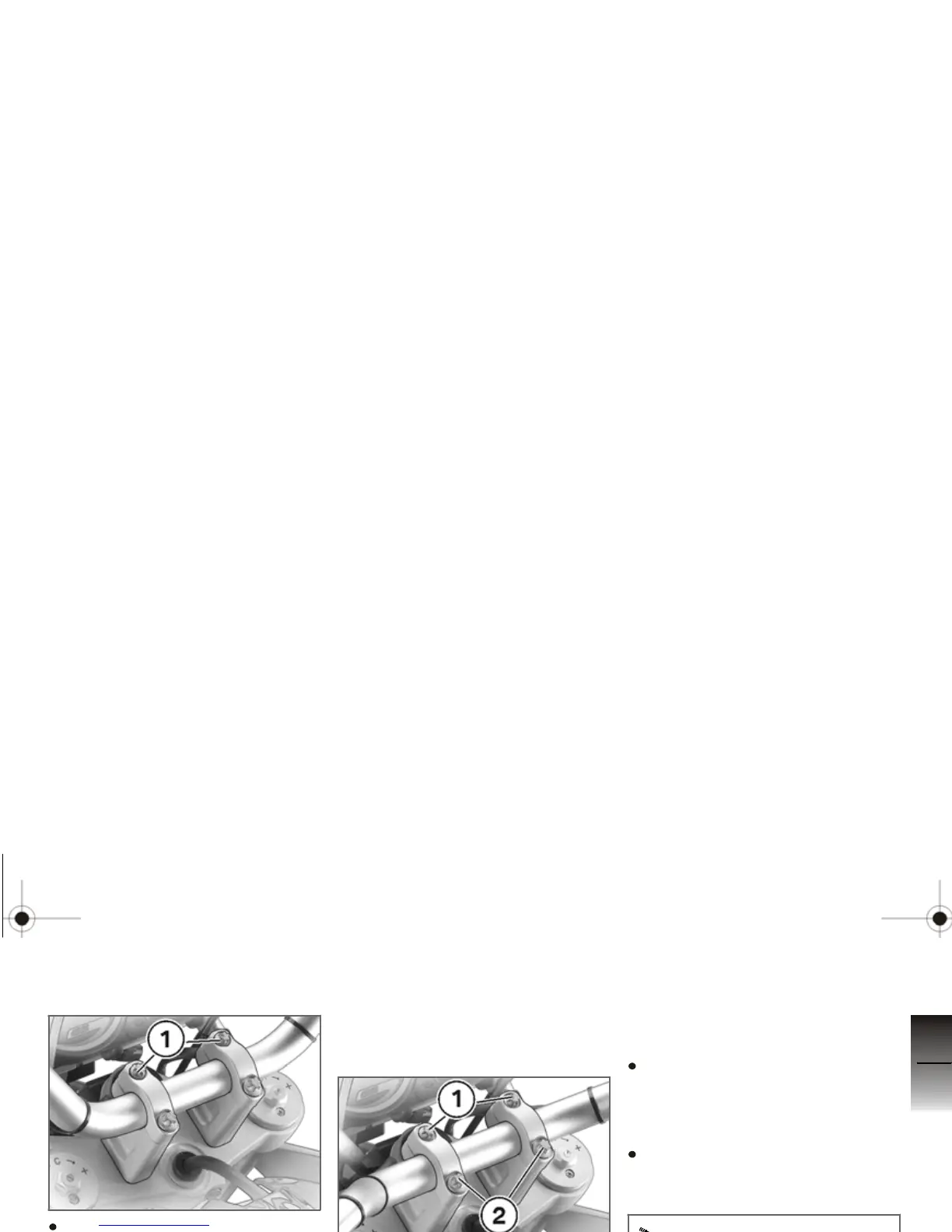

Install small screws 1, but
do not tighten.
Align the handlebars in the
clamping blocks such that
the points of intersection
of crosses A are in line
with the gaps between the
top and bottom clamping
blocks.
Tighten large screws 2 to
the specified tightening
torque.
Handlebar clamping
block to fork bridge
Thread-locking
compound: Optimoly TA
38 Nm
Make sure that there is no
gap between the handlebar
clamping blocks on the side
where the large screws are
located.
If necessary, slacken
screws 1 and retighten
screws 2 to the specified
tightening torque.
Tighten small screws 1 to
the specified tightening
torque.
Handlebar to handle-
bar clamping block
Thread-locking
compound: Optimoly TA
19 Nm
A gap remains between the
handlebar clamping blocks
on the side where the small
screws are located.
