N73B60 Engine - Diagnosis
Intake Manifold - Removal

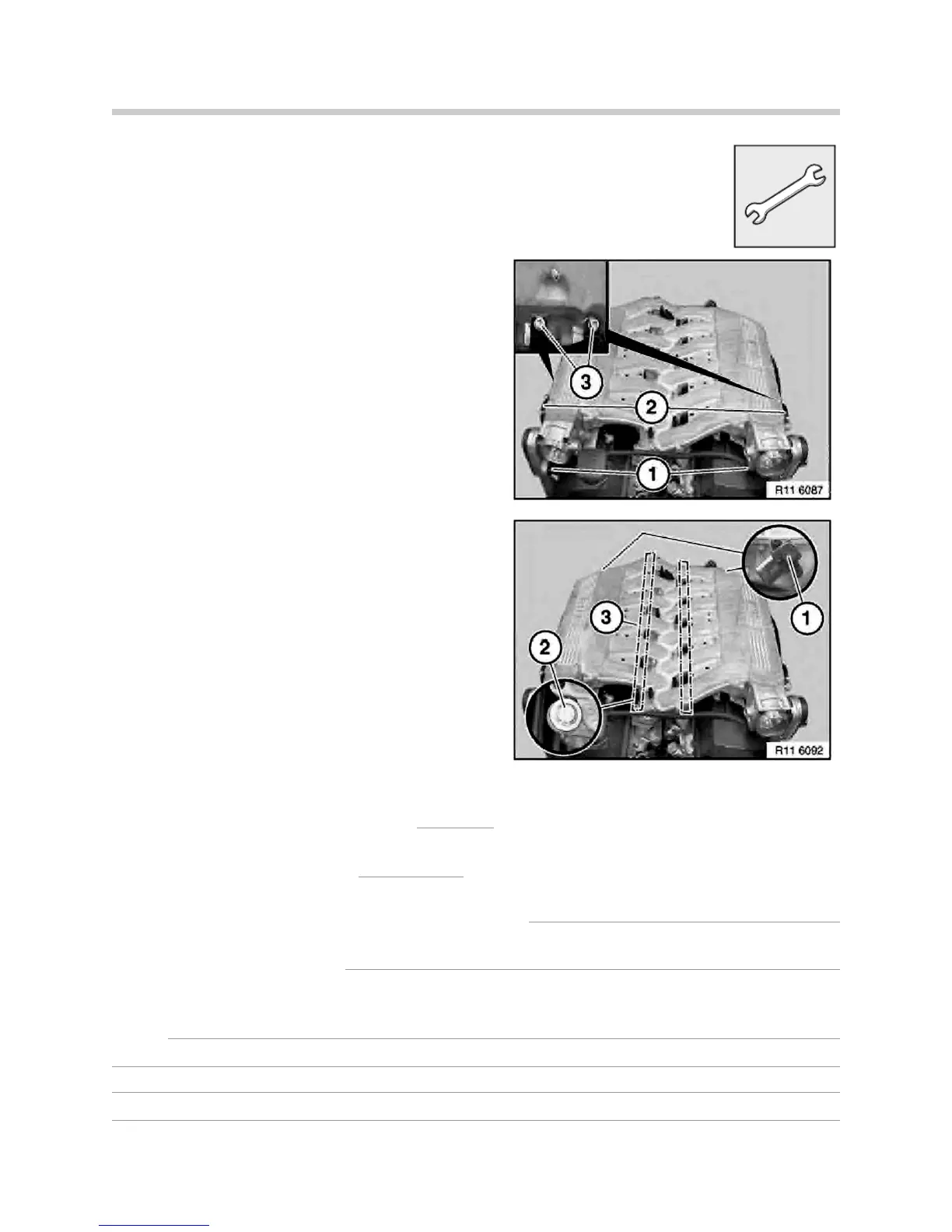

Top Diagram
• Remove plug connections on the throttle
assemblies (1).
• Detach engine vent hoses from pressure con-
trol valves (2).
• Detach oustide braces for intake manifold
(3 L/R).
Lower Diagram
• Remove plug connections on the intake mani-
fold pressure sensors (1 L/R).
• Remove bolts (2) along sections (3).
• Lift intake manifold up to remove.
Questions
HHooww mmaannyy aattttaacchhiinngg bboollttss aarree tthheerree??
WWhhaatt iiss tthhee ttiigghhtteenniinngg ttoorrqquuee?? NNmm
HHooww aarree tthhee iinnttaakkee mmaanniiffoolldd ggaasskkeettss hheelldd iinn ppllaaccee??
CCaann tthhee ggaasskkeettss bbee rreeuusseedd??
NNootteess::
001
