21.6
•

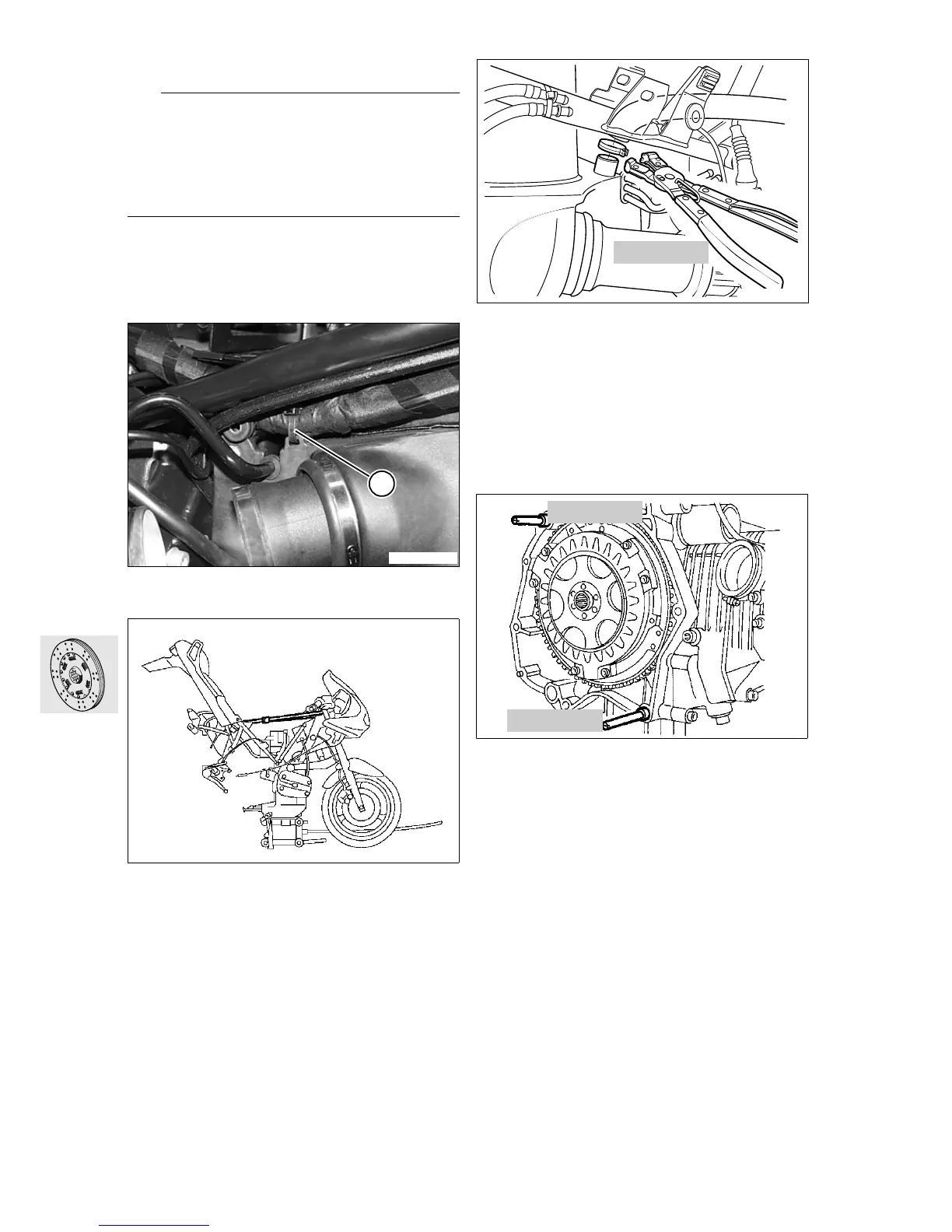

Remove the rear ABS sensor.
d Warning:
Integral ABS When removing and installing the
brake calipers, force back the pistons carefully to
ensure that the wheel-circuit reservoir does not
overflow.
If fluid escapes, proceed in accordance with “In-
structions for filling reservoir” (a 00.48).
•
Remove rear brake caliper.
•
Use cable ties to secure the brake caliper to the
rear frame.
•
Disconnect clutch-system bleed line from rear
frame.
•
Remove cable ties (5) from left air filter box.
•
Tilt the rear frame up and secure it in this position
with a strap attached to the handlebars.
•
Remove spring strut.
•
Use hose clip pliers, BMW No. 17 5 500, to dis-
connect hose for crankcase breather from air-fil-
ter box.
•
Remove air filter box.
•
Remove the fuel distributor.
•
Remove clutch slave cylinder.
•
Remove clutch pushrod.
•
Remove rear battery carrier fasteners.
•
Disconnect ground cable below the battery car-
rier.
•
Always use oiled guide pins, BMW No. 23 1 820,
when removing or installing the gearbox.
•
Remove the rear wheel, rear wheel drive and
swinging arm together with the gearbox.
R22210040
5
RS230310
R21110020
17 5 500
RS230011
23 1 820
23 1 820
