00.48
Instructions for filling rear wheel
circuit reservoir
e Attention:
Integral brakes, the front brake must be ready for
use.
•

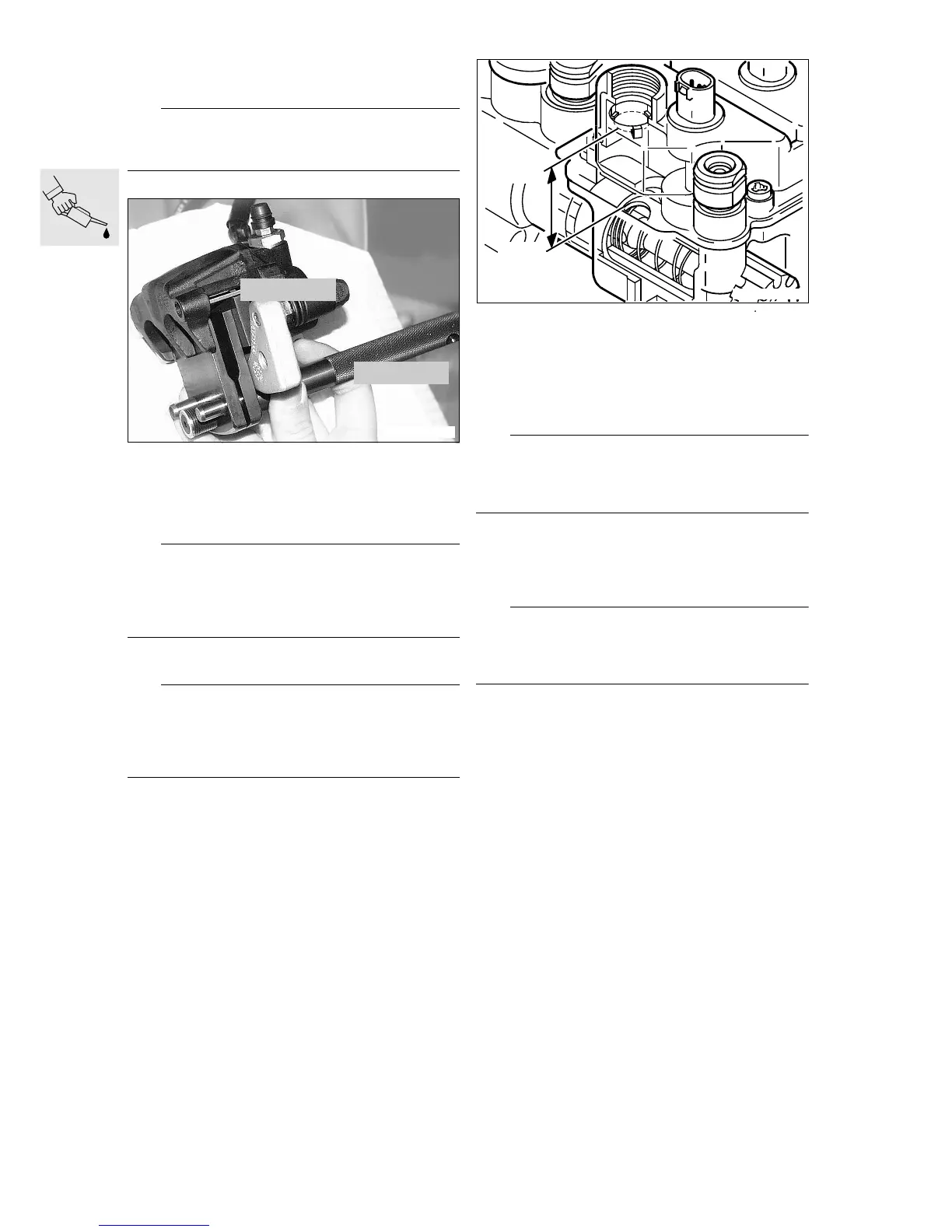

Top up fluid in rear wheel-circuit reservoir to
“MAX” mark if necessary.
•
Fully tighten resetting tool, BMW No. 34 1 531,
and adapter, BMW No. 34 1 536.
e Attention:
The piston in the base of the wheel-circuit reservoir
must always be covered by the fluid, as otherwise air
can be drawn into the brake system.
Bleed the system again if this happens.
•
Switch on the ignition.
L Note:
After switching on the ignition, always wait for the
BMW Integral ABS to complete its self-diagnosis.
Do not operate the brake lever until self-diagnosis
has completed.
•
Operate the footbrake lever until the pistons of
the rear brake caliper are in contact with
resetting tool, BMWNo.341531, and
adapter, BMWNo.341536.
•
Top up the fluid in the wheel-circuit reservoir until
one of the three protrusions in the filler neck just
touches the surface of the fluid (arrow).
•
Remove resetting tool, BMW No. 34 1 531, and
adapter, BMW No. 34 1 536.
d Warning:
Make sure that the wheel-circuit reservoir does not
overflow when the brake pads/brake calipers are in-
stalled.
•
Install rear brake pads and brake caliper.
•
Hand-tighten cap of rear wheel-circuit reservoir.
•
Check operation of the brake system with the ig-
nition switched on.
e Attention:
After all the work on the brake system has been
completed, run a bleed test using the
BMW MoDiTeC.
•
Perform bleed test with BMW MoDiTeC
(
a 00.31).
•
Install fuel tank.
Brake fluid ...................................................DOT 4
X Tightening torque:
Bleed screw in rear brake caliper ................... 5 Nm
Brake caliper to rear wheel drive .................. 40 Nm
R28000170
34 1 536
34 1 531
MAX
MIN
R28340090
