46.21

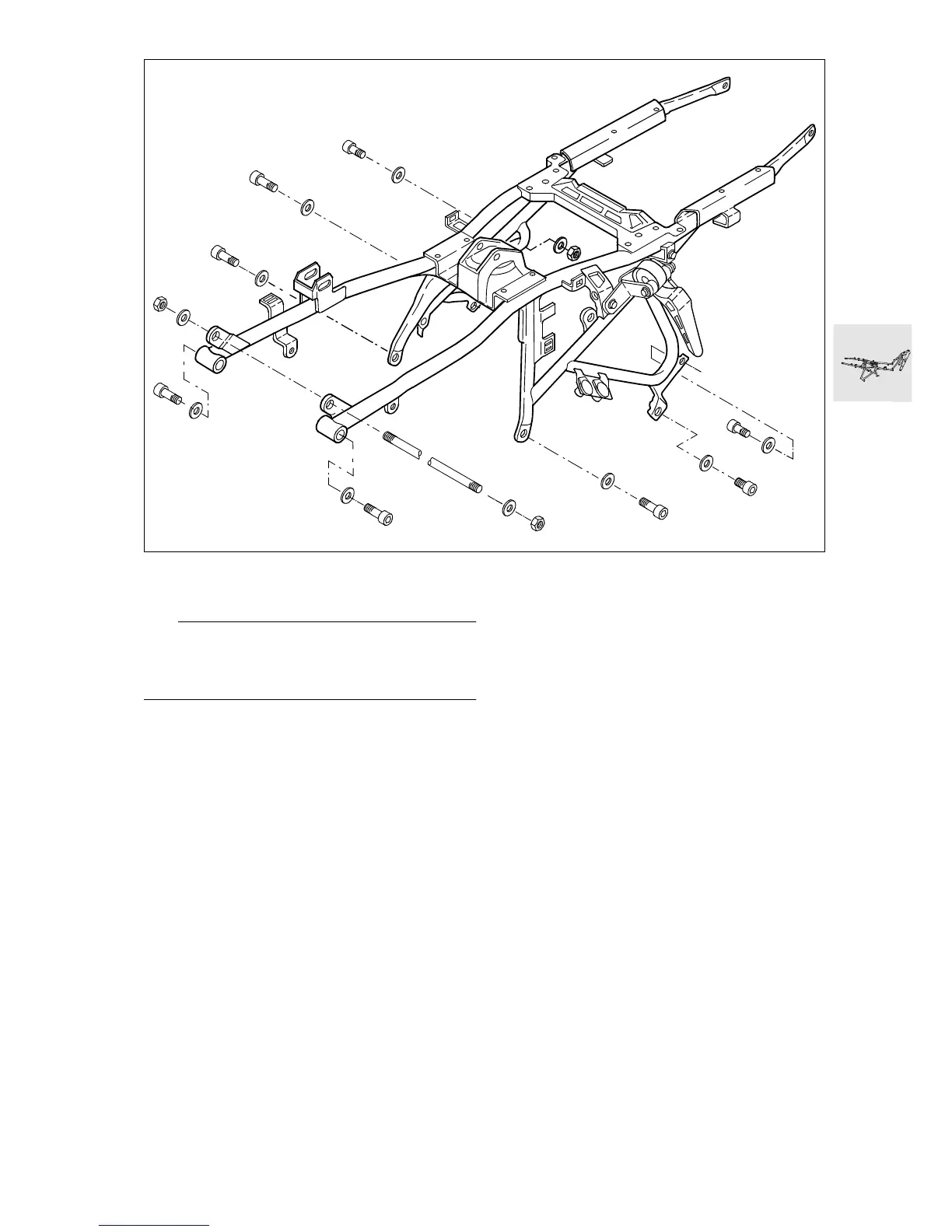

46 51 Removing and installing frame
rear section
e Attention:
Switch off ignition.
Disconnect earth (ground) lead from battery.
Insulate earth (ground) lead.
•
Remove the seat.
•
Remove fuel tank.
•
Remove luggage rack and case holders.
•
Remove rear side panels.
•
Remove rear section, bottom.
•
Disconnect the diagnostic plug and the cable.
•
Remove seat adjuster and auxiliary frame.
•
Remove central electrics box from rear frame.
•
Disconnect plug of rear ABS sensor and cable.
•
Disconnect the plug for the rear brake-light
switch and remove
the cable.
•
Disconnect the side stand switch plug and re-
move the cable.
•
Disconnect the power-socket plug and remove
the cable.
•
Disconnect the fuel-tank plug and remove the
cable.
•
Disconnect the fuel-tank breather hoses.
•
Remove holder of brake line.
•
Remove rear brake fluid reservoir from its holder.
•
Remove the silencer from the rear frame section.
•
Remove fasteners securing footrest plate to rear
frame, slacken fasteners securing it to gearbox
housing.
•
Remove upper fastener of spring strut.
•
Remove spring-strut adjuster from rear
frame.
•
Remove air filter and remove air filter box
from rear frame.
•
Remove rear section of frame.
•
Remove fitted components.
•
Installation is the reverse of the removal proce-
dure.
X Tightening torque:
Frame to gearbox and footrest plate ............ 42 Nm
Frame to engine ........................................... 42 Nm
Struts to engine
(clean thread + Loctite 2701)........................ 58 Nm
Spring strut to frame .................................... 43 Nm
R22460110
