BMW R 1200 GS ADVENTURE Rider's Manual

Remove the front seat
( 61)
Removing right side panel
( 129)

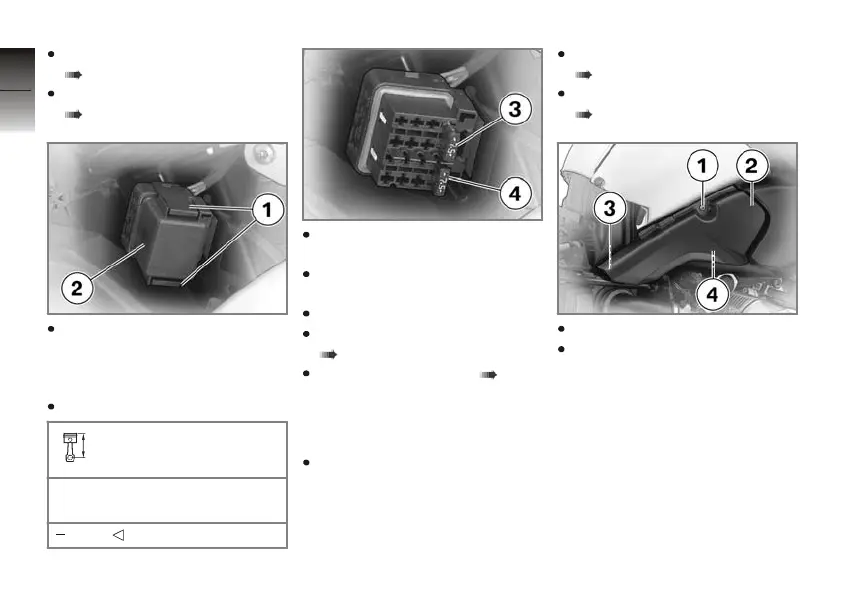

Squeeze locking clips 1 at
top and bottom together
and pull fuse cover 2 aside
to remove.
Replace the defective fuse.
Auxiliary headlight
fuses
with OE Supplement-
ary headlight:
7.5 A
Replace fuse 3 for left head-
light.
Replace fuse 4 for right
headlight.
Install the fuse cover.
Installing right side panel
( 129)
Install the front seat ( 62)
Air filter
Removing air filter
Make sure the ground is
level and firm and place
the motorcycle on its centre
stand.
Remove the front seat
( 61)
Removing right side panel
( 129)
Remove screw 1.
Pull side cover 2 out of
holders 3 and 4.
7
126
z Maintenance

BMW R 1200 GS ADVENTURE Specifications

General

Displacement	1, 170 cc
Bore x Stroke	101 mm x 73 mm
Max Power	125 hp (92 kW) at 7, 750 rpm
Max Torque	125 Nm at 6, 500 rpm
Compression Ratio	12.5:1
Fuel System	Electronic intake pipe injection
Final Drive	Shaft drive
Front Brake	Dual disc brake, floating brake discs, diameter 305 mm, 4-piston radial calipers
Rear Brake	Single disc brake, diameter 276 mm, double-piston floating caliper
Length	2, 255 mm
Width	980 mm
Height	1, 450 mm
Wheelbase	1, 510 mm
Wet Weight	260 kg
Fuel Capacity	30 liters
Tires Front	120/70 R19
Tires Rear	170/60 R17
Engine Type	Air/liquid-cooled four-stroke flat twin engine, double overhead camshaft, one balance shaft
Transmission	6-speed
Clutch	Hydraulically operated wet clutch
Frame	Two-section frame
Front Suspension	BMW Motorrad Telelever
Rear Suspension	BMW Motorrad Paralever
ABS	BMW Motorrad Integral ABS
Seat Height	890 mm
