BMW R 1200 GS ADVENTURE Rider's Manual

Engage retainer 1.
Close the case lid.

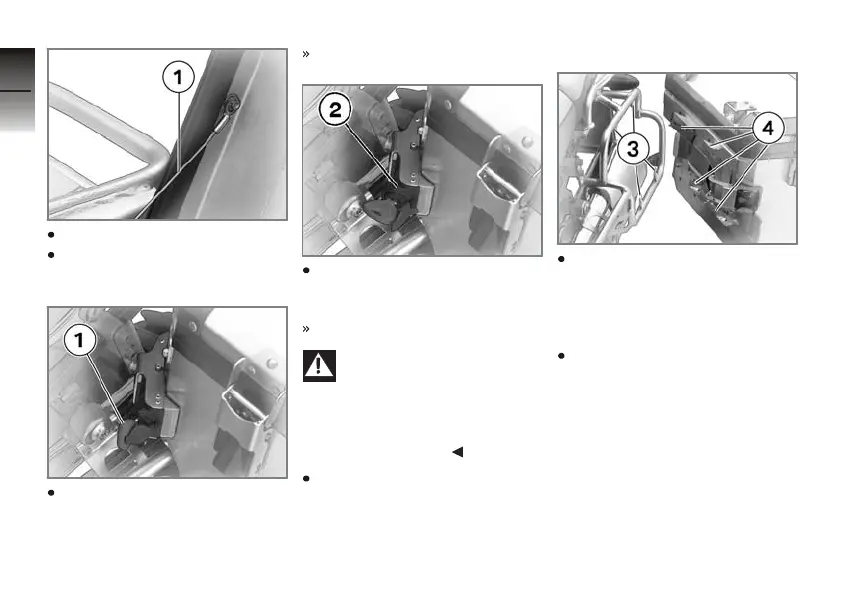

Removing cases
Turn key 1 counter-
clockwise in the case
lock.
The case is unlocked.
Push catch 2 in as far as
it will go, while holding the
case.
The catch is open.
The left case and the
case carrier can become
hot on long rides.
Allow the case and the case
carrier to cool down before
removing the case.
Pull the case forward as far
as it will go and then out to
remove.
Installing cases
Position the case on the
bottom rail of the case
carrier in such a way that
hooks 4 are in front of
mounts 3.
Pivot the case against the
top rail, push it back into
the mounts and hold it in
position.
6
94
z Accessories

BMW R 1200 GS ADVENTURE Specifications

General

Displacement	1, 170 cc
Bore x Stroke	101 mm x 73 mm
Max Power	125 hp (92 kW) at 7, 750 rpm
Max Torque	125 Nm at 6, 500 rpm
Compression Ratio	12.5:1
Fuel System	Electronic intake pipe injection
Final Drive	Shaft drive
Front Brake	Dual disc brake, floating brake discs, diameter 305 mm, 4-piston radial calipers
Rear Brake	Single disc brake, diameter 276 mm, double-piston floating caliper
Length	2, 255 mm
Width	980 mm
Height	1, 450 mm
Wheelbase	1, 510 mm
Wet Weight	260 kg
Fuel Capacity	30 liters
Tires Front	120/70 R19
Tires Rear	170/60 R17
Engine Type	Air/liquid-cooled four-stroke flat twin engine, double overhead camshaft, one balance shaft
Transmission	6-speed
Clutch	Hydraulically operated wet clutch
Frame	Two-section frame
Front Suspension	BMW Motorrad Telelever
Rear Suspension	BMW Motorrad Paralever
ABS	BMW Motorrad Integral ABS
Seat Height	890 mm
