BMW S 1000R 2015 User Manual

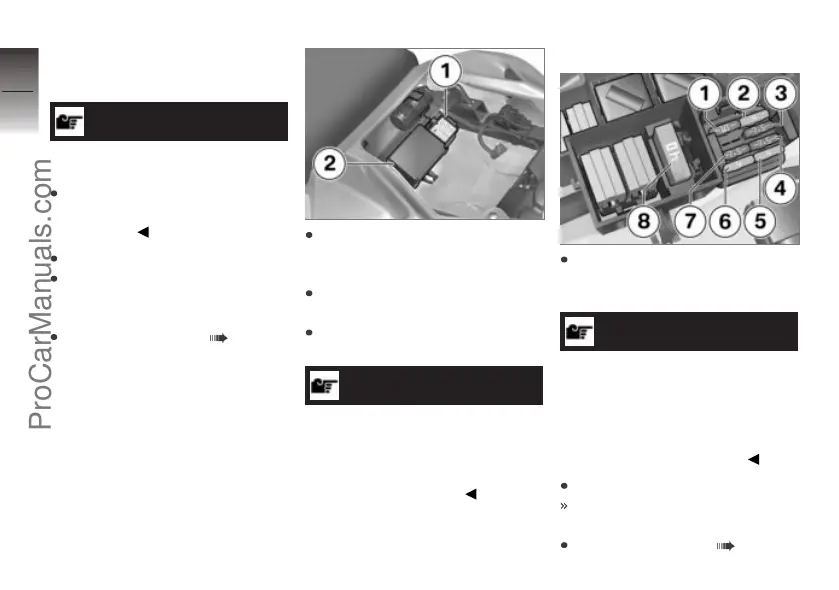

Fuses
Removing fuse
ATTENTION
Jumpering of blown fuses.
Risk of short-circuit and fire.
Always replace a defective fuse
with a new fuse of the same
amperage.
Switch off the ignition.
Make sure the ground is level
and firm and place the motor-
cycle on its stand.
Removing rear seat ( 61).
Squeeze the latches together
and remove cover of fuse
box 1.
To replace the main fuse, re-
move cover 2 of the relay box.
Pull the defective fuse up and
out of the fuse box.
NOTICE
If fuse defects recur frequently
have the electric circuits checked
by a specialist workshop,
preferably an authorised
BMW Motorrad dealer.
Replacing fuse
Replace the defective fuse with
a fuse of the correct amperage
rating.
NOTICE
The fuse assignments and fuse
amperage ratings specified for
your motorcycle are listed in the
section entitled "Technical data".
The figures in the graphic corres-
pond to the fuse numbers.
Close the fuse cover.
The latch engages with an
audible click.
Install the rear seat ( 61).
