154n
Under the cargo area floor in a pocket.
530us106
Front
1 Move the wiper to a fold-out position
(refer to page 69).

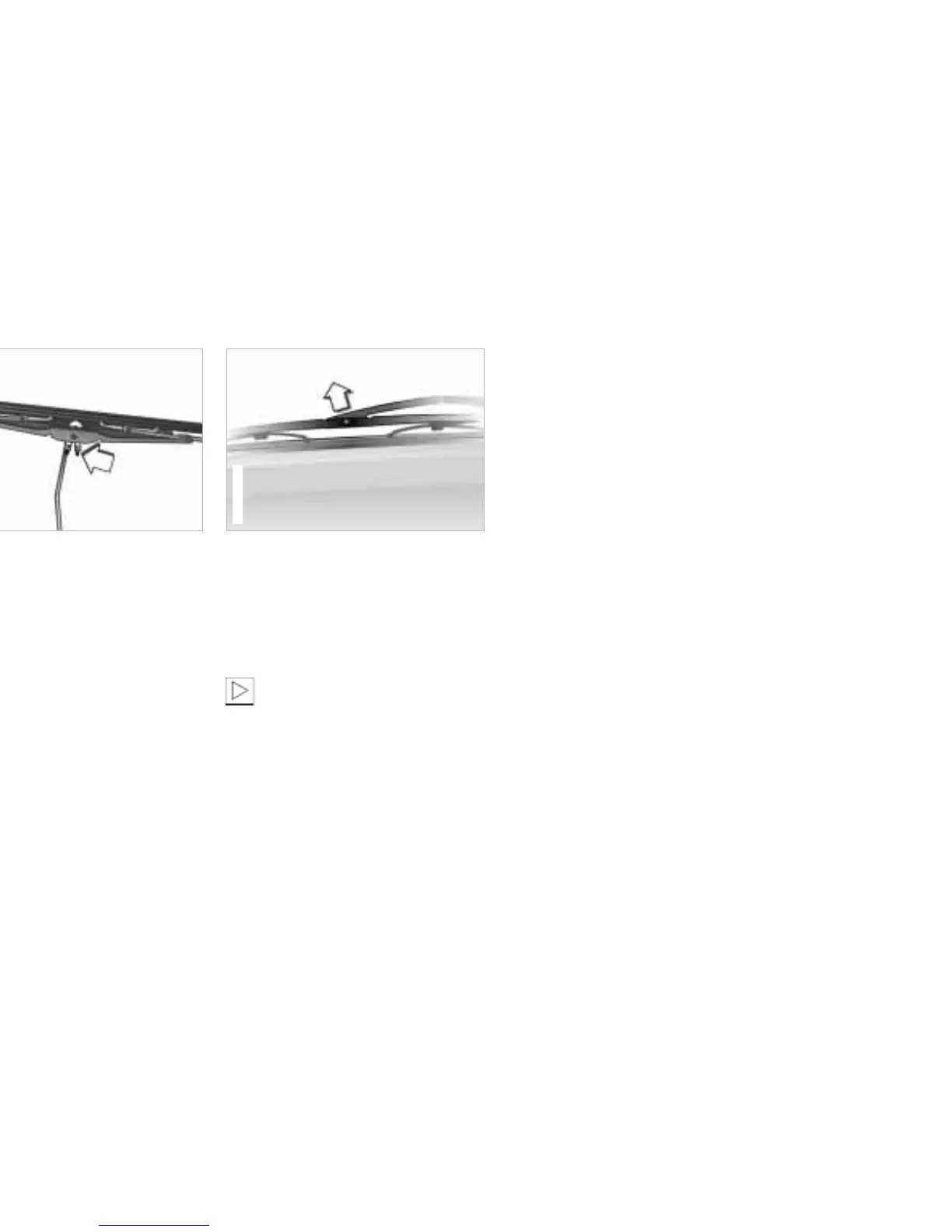

2 Lift the wiper arm and press the se-
curing spring (arrow).
3 Pull the wiper blade off toward the
wiper arm.
4 Insert the new blade and snap it into
place.
Fold the wipers back down onto
the windshield before you turn the
ignition key to position 1 or 2 again. If
you do not, they could be damaged.<
360de114
Rear
1 Hold the wiper blade on the window
and remove/unclip the wiper arm at
the articulated joint (arrow).
2 Insert a new wiper blade and press it
on/clip it into the wiper arm.
Use only wiper blades approved
by BMW.<
