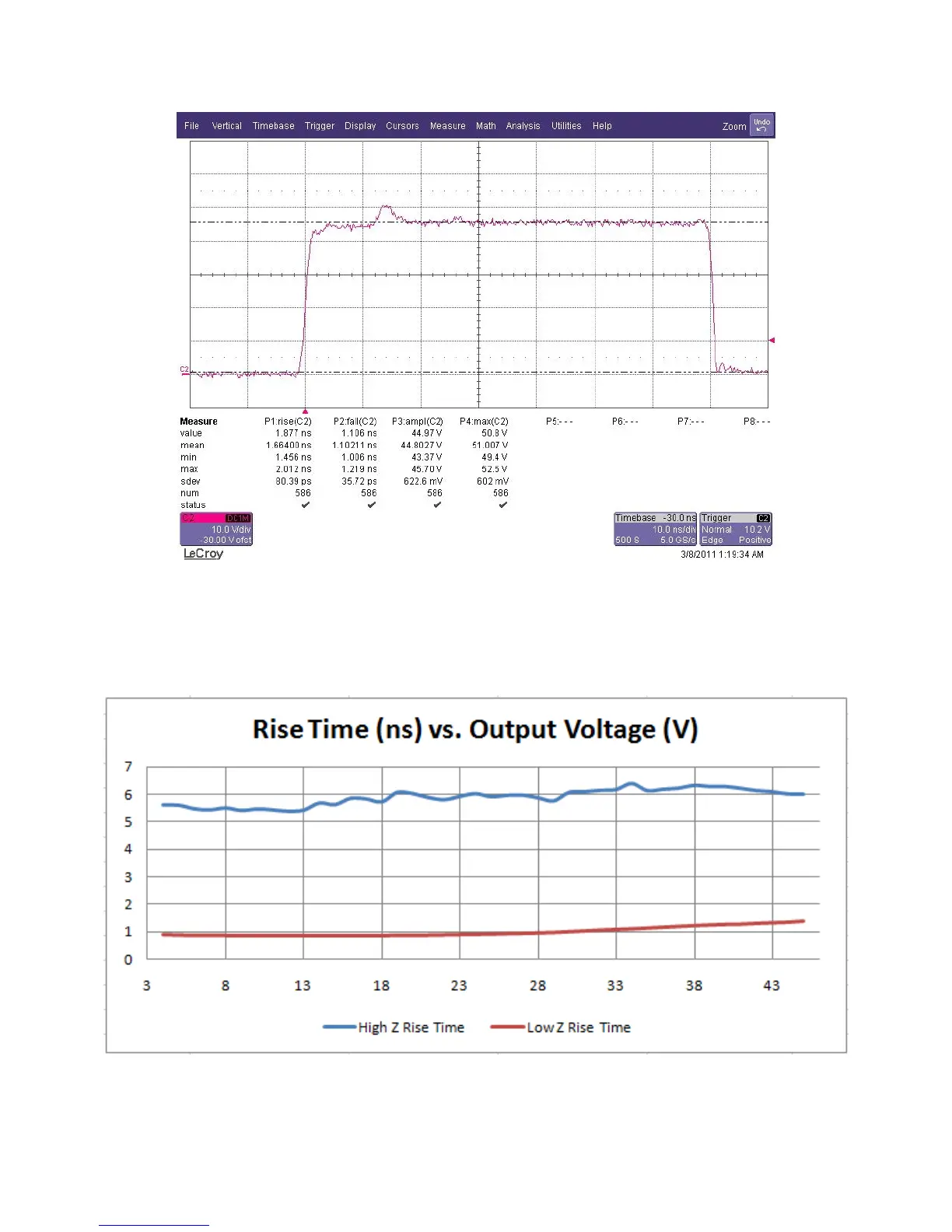

Model 577 Operating Manual 23
Low Z Load at 45 V
Rise time and overshoot are tuned for best response at low impedance (low Z)
Rise Time vs. Output Voltage
