These two parameters can be specified independently for each sequencer entry and for each output
channel.

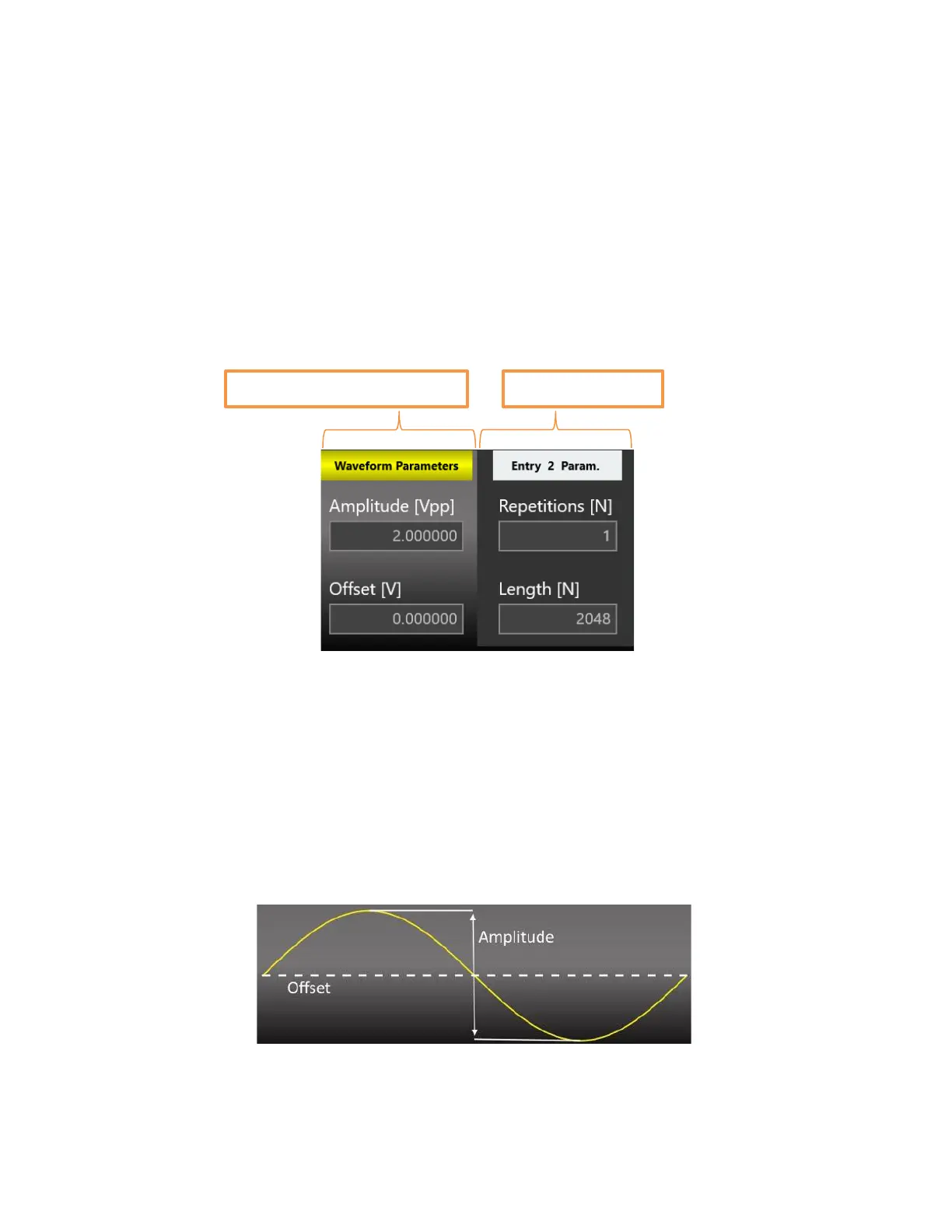

In the right part there are the Repetitions[N] and the Entry Length[N] for the selected sequencer entry.
These two parameters are specific for the selected sequencer entry. In particular Repetitions[N] is the
number of repetitions of the selected sequencer entry.
These parameters are common to all the channels in the same sequencer entry.
Note: Repetitions[N]=1 means that the waveform is executed only once.
Amplitude[Vpp] parameter
It defines the difference between the maximum value and the minimum value of the waveform
expressed in Volts.
Offset[V]
It defines the voltage of (Vmax+Vmin)/2 expressed in Volts where Vmax is the maximum level of the
waveform and Vmin is the minimum level of the waveform
