Model 670C Berkeley Nucleonics Corp. 51 of 96
• Advanced: In this mode the execution of the sequence can be changed by using conditional and
unconditional jumps (JUMP TO and GO TO features) and dynamic jumps (PATTERN JUMP
feature). Please refer to the Advanced Run Mode section for more information.
Wait Trigger On
Defines the behaviour of the output during the wait trigger condition in the Triggered Run Modes. If
“First sample” is selected the first waveform sample of the next entry is held until the next trigger is
received. If “Last sample” is selected the last waveform sample of the current entry is held until the next
trigger is received.

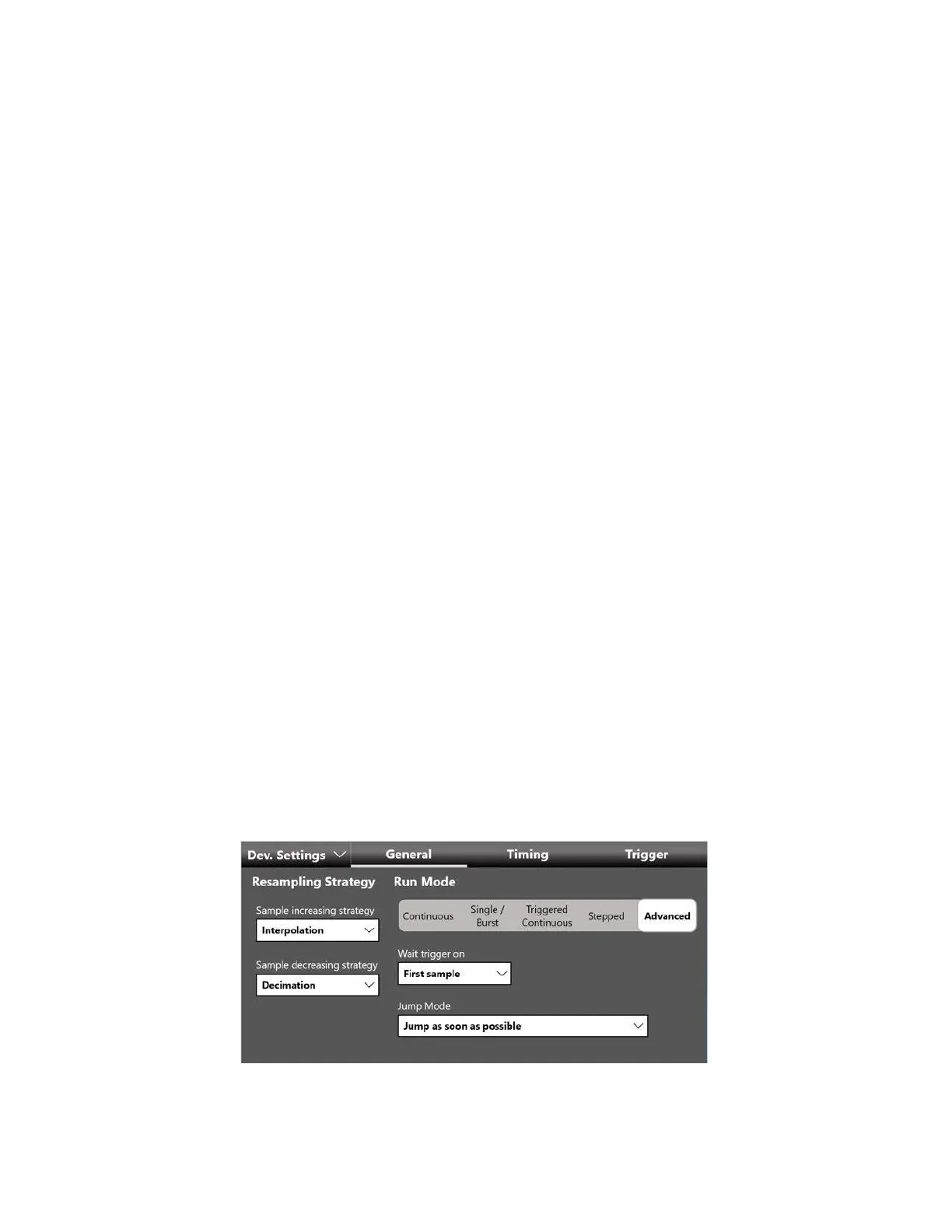

Resampling Strategy
It defines the strategy to adapt the original waveform length to the sequencer entry length. The
“Sample increasing strategy” parameter defines the strategy used to adapt the waveform length to the
sequencer entry length in the case where the original waveform length is shorter than the sequencer
entry length. The techniques adopted can be:
• Interpolation: it performs a linear interpolation between the waveform samples
• Return Zero: it fills with ‘0’s the tail of the waveform
• Hold Last: it holds the last value of the waveform
• Samples Duplication: it repeats the waveform samples
The “Sample decreasing strategy” parameter defines the strategy used to adapt the waveform length to
the sequencer entry length in the case where the original waveform length is longer than the sequencer
entry length. The techniques adopted can be:
• Decimation: it reduces the number of samples maintaining the waveform shape
• Cut tail: it cuts the tail of the waveform reducing its size
• Cut head: it cuts the head of the waveform reducing its size.
Jump Mode
