Model 670C Berkeley Nucleonics Corp. 53 of 96
Advanced Run Mode
The Advanced run mode allows you to change the execution of the sequence by using loops, conditional,
unconditional jumps (Jump To, Pattern Jump and Go To features) and events.
It can be used to create long and complex waveform scenarios.
Follow these steps to start working with the Advanced Mode:

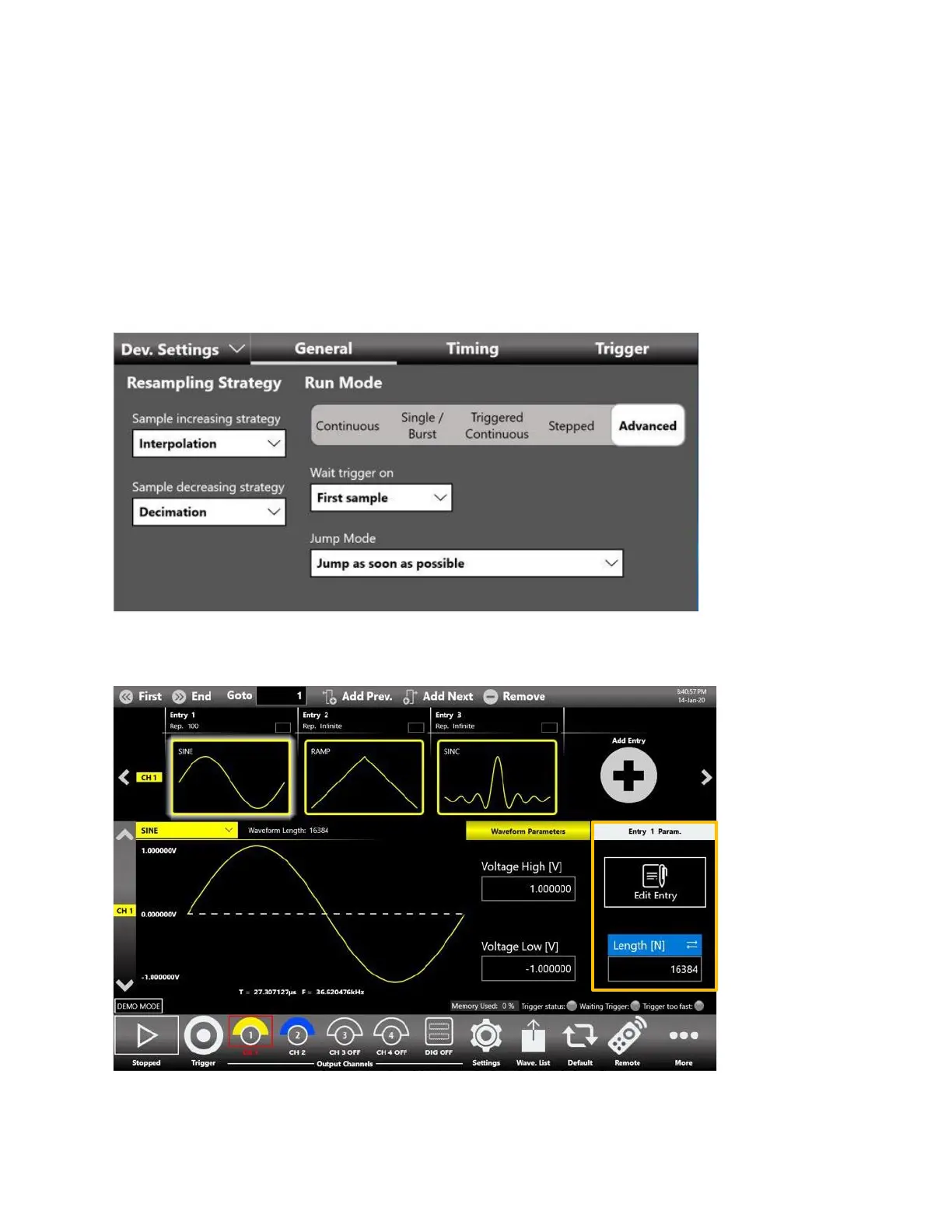

• In the Device Setting ➔ General page select Advanced as Run Mode
• The sequencer page will change its standard layout and the Edit Entry button will appear in the
Entry Parameters area.
