Model 670C Berkeley Nucleonics Corp. 61 of 96

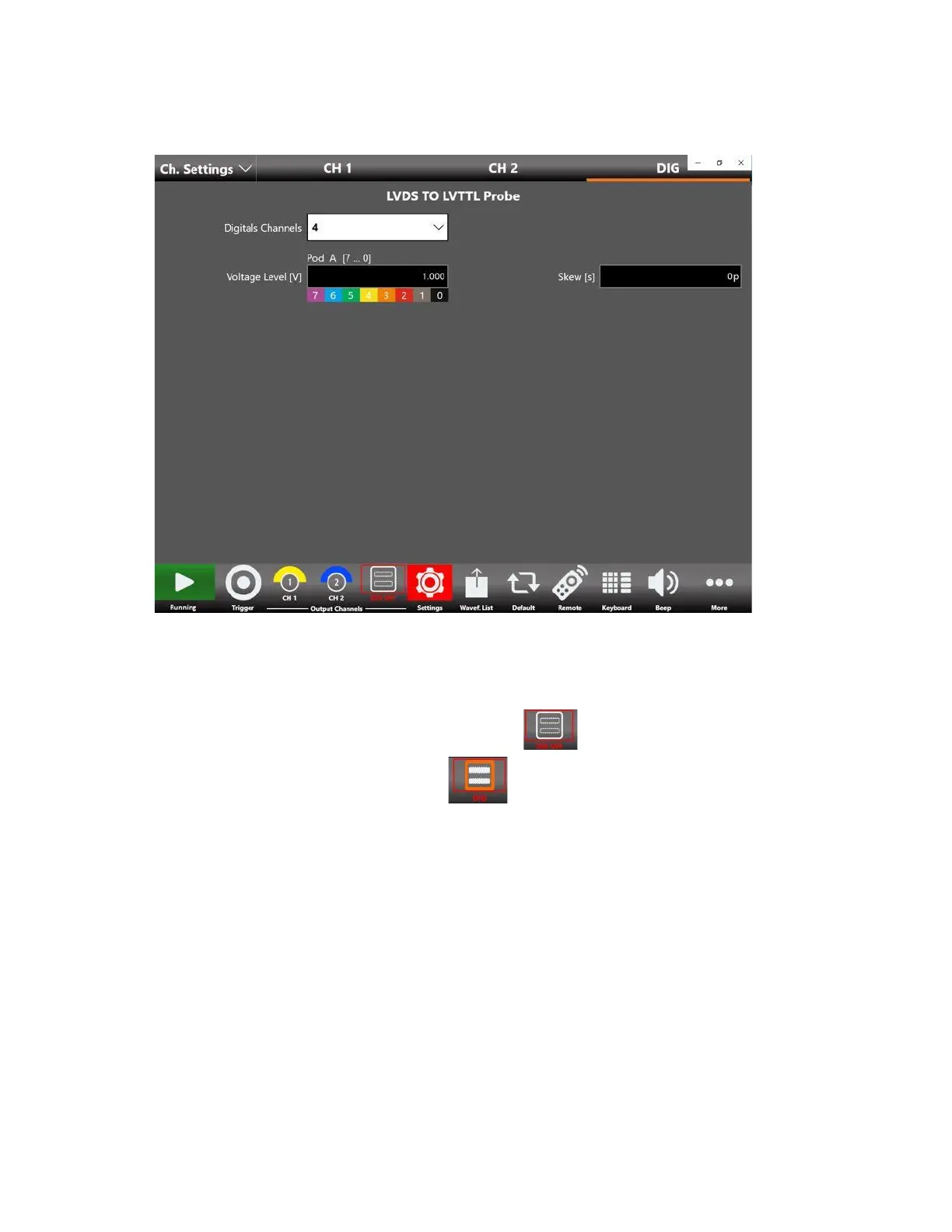

Digital Channels
• Digital Channels: it is possible to enable up to 8 digital lines.
If the Digital Channels number is 0, the DIG button will be disabled. If two or more
digital lines are selected the DIG button can be touched to enable/disable the digital
lines. Once the digital channels are enabled (≥ 2 digital channels selected) it is possible to access
to the Digital Channels Page (see the picture below) to define the digital waveform sequence as
for the analog channel page.
IMPORTANT NOTE: enabling the digital lines will cause a decrease of resolution in the analog
output channels as shown in the following table:
