Model 670C Berkeley Nucleonics Corp. 62 of 96

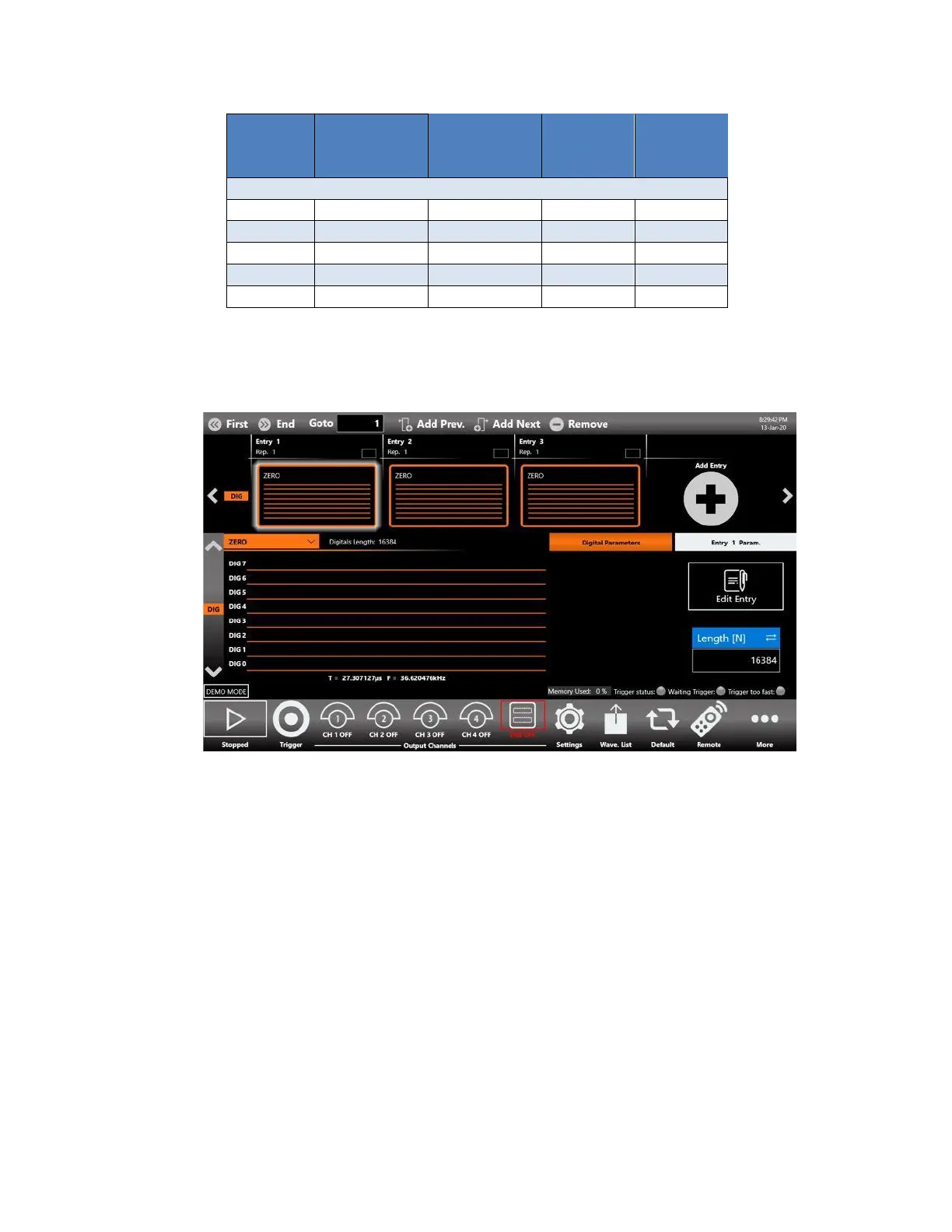

Number
of digital
lines
CH1
Resolution
CH2
Resolution
CH3
Resolution
CH4
Resolution
670C-4C models
0
16 bits
16 bits
16 bits
16 bits
2
14 bits
16 bits
16 bits
16 bits
4
14 bits
14 bits
16 bits
16 bits
6
14 bits
14 bits
14 bits
16 bits
8
14 bits
14 bits
14 bits
14 bits
• Voltage Level[V]: this parameter defines the output voltage level (in Volt) of the LVDS to LVTTL
Digital Probe. Please note that it will take effect only when the Digital Option is installed in the
instrument and with the LVDS to LVTTL probe connected.
• Skew[s]: it sets the delay between the analog channels and the digital channels in order to de-
skew the analog and digital outputs. The skew between analog/digital channels depends on the
sampling frequency: the minimum skew is 1 clock cycle @ the sampling frequency. The edited
value is automatically rounded to the closest value that the hardware can implement.
