Model 670C Berkeley Nucleonics Corp. 63 of 96

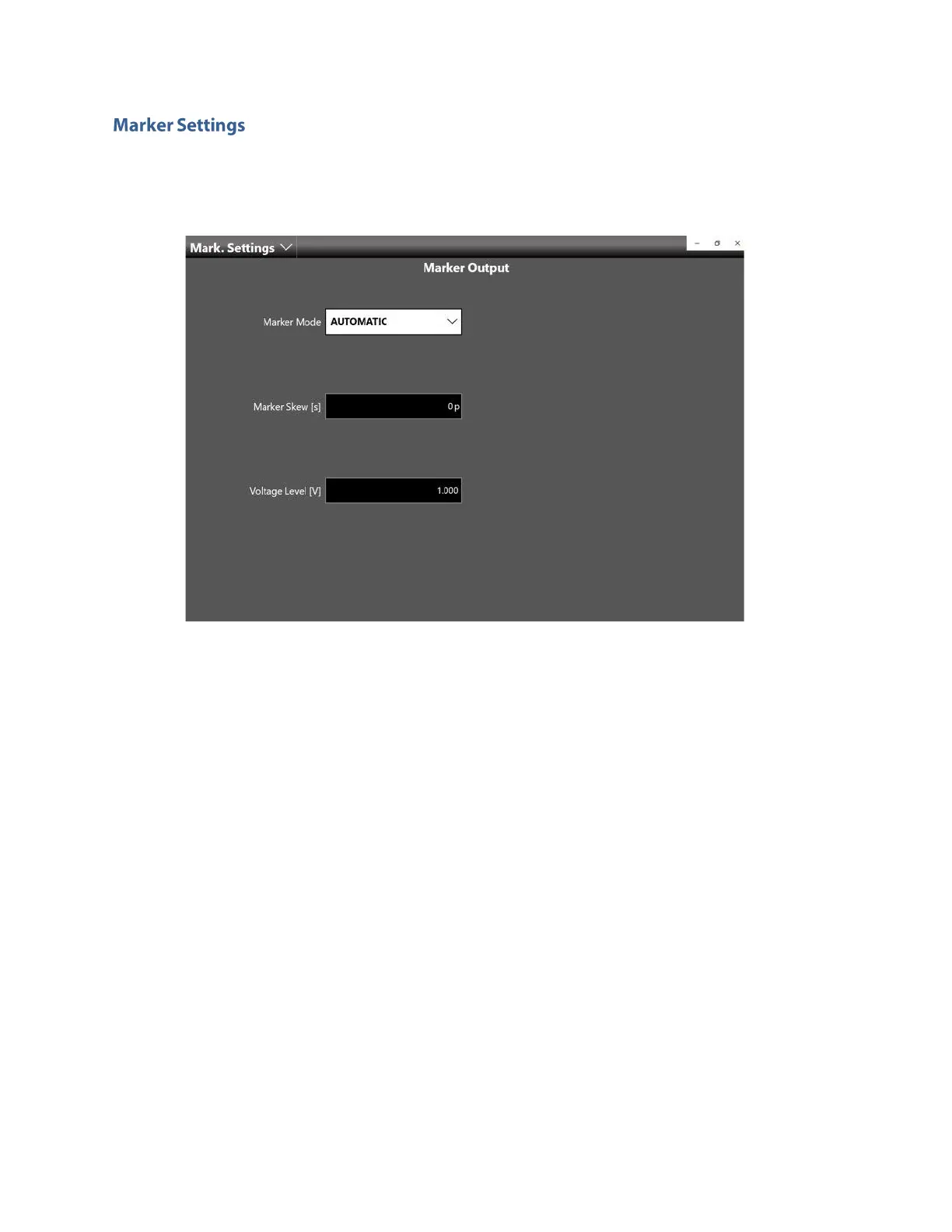

On the marker output page, you can set the behavior and parameters of the Marker signal that is
provided at the front panel MARKER OUT BNC connector.
Marker Mode:
• Automatic: the marker has a behavior that depends on the Run Mode. In detail:
o Continuous: the instrument generates a Marker pulse of the duration of 8 sampling
clock periods, synchronous with the analog outputs, for each sequencer entry and for
each repetition.
o Single/Burst: each time a trigger event has been received, while the instrument is
waiting for a trigger event, a Marker pulse is generated of the duration of 8 sampling
clock periods.
o Triggered Continuous: at the start event the instrument generates a Marker pulse of
the duration of 8 sampling clock periods.
o Stepped: each time a trigger event is received, while the instrument is waiting for a
trigger event, a Marker pulse is generated of the duration of 8 sampling clock periods. In
case an entry with infinite repetitions is being executed, if a trigger event occurs, a
Marker pulse will be generated and the execution will skip to the next entry. In this case
the Marker pulse could be not synchronous with the waveform of next entry.
o Advanced: each time a trigger event has been received, while the instrument is waiting
for a trigger event, a Marker pulse is generated of the duration of 8 sampling clock
periods. The marker pulse is generated also each time a Jump event occurs; in this case
