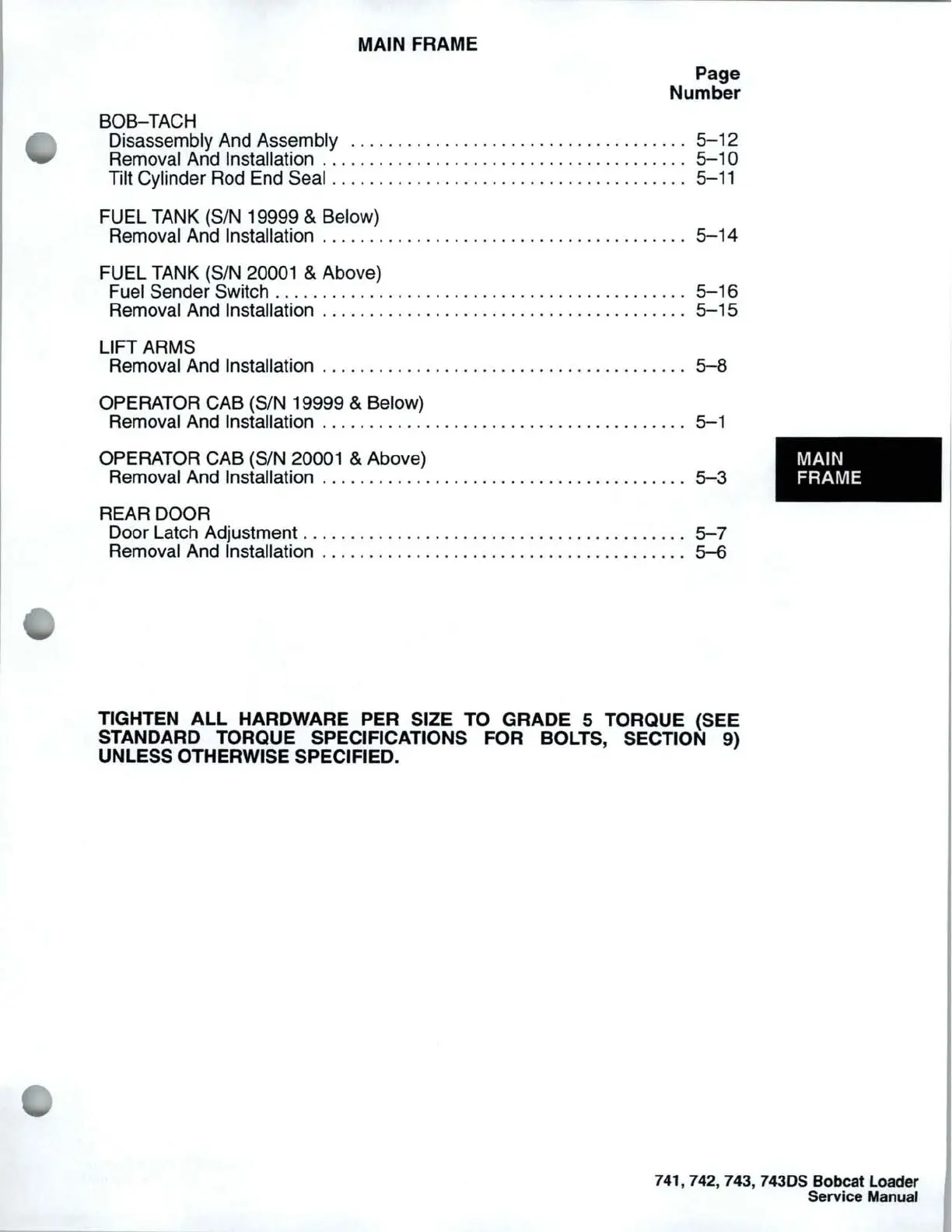

MAIN FRAME
BOB-TACH
Page
Number
Disassembly And Assembly .................................... 5-12
Removal And Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 5-10
Tilt Cylinder Rod End Seal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 5-11
FUEL TANK (SIN 19999 & Below)
Removal And
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 5-14
FUEL TANK (SIN 20001 & Above)
Fuel Sender Switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
.. 5-16
Removal And Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 5-15
LIFT ARMS
Removal And
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 5-8
OPERATOR CAB (SIN 19999 & Below)
Removal And
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 5-1
OPERATOR CAB (SIN 20001 & Above)
Removal And
Installation ..... .. ................................ 5-3
REAR DOOR
Door Latch Adjustment ... ............................. . ........ 5-7
Removal And Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 5-6
TIGHTEN ALL HARDWARE PER SIZE TO GRADE 5 TORQUE (SEE
STANDARD TORQUE SPECIFICATIONS FOR BOLTS, SECTION 9)
UNLESS OTHERWISE SPECIFIED.
