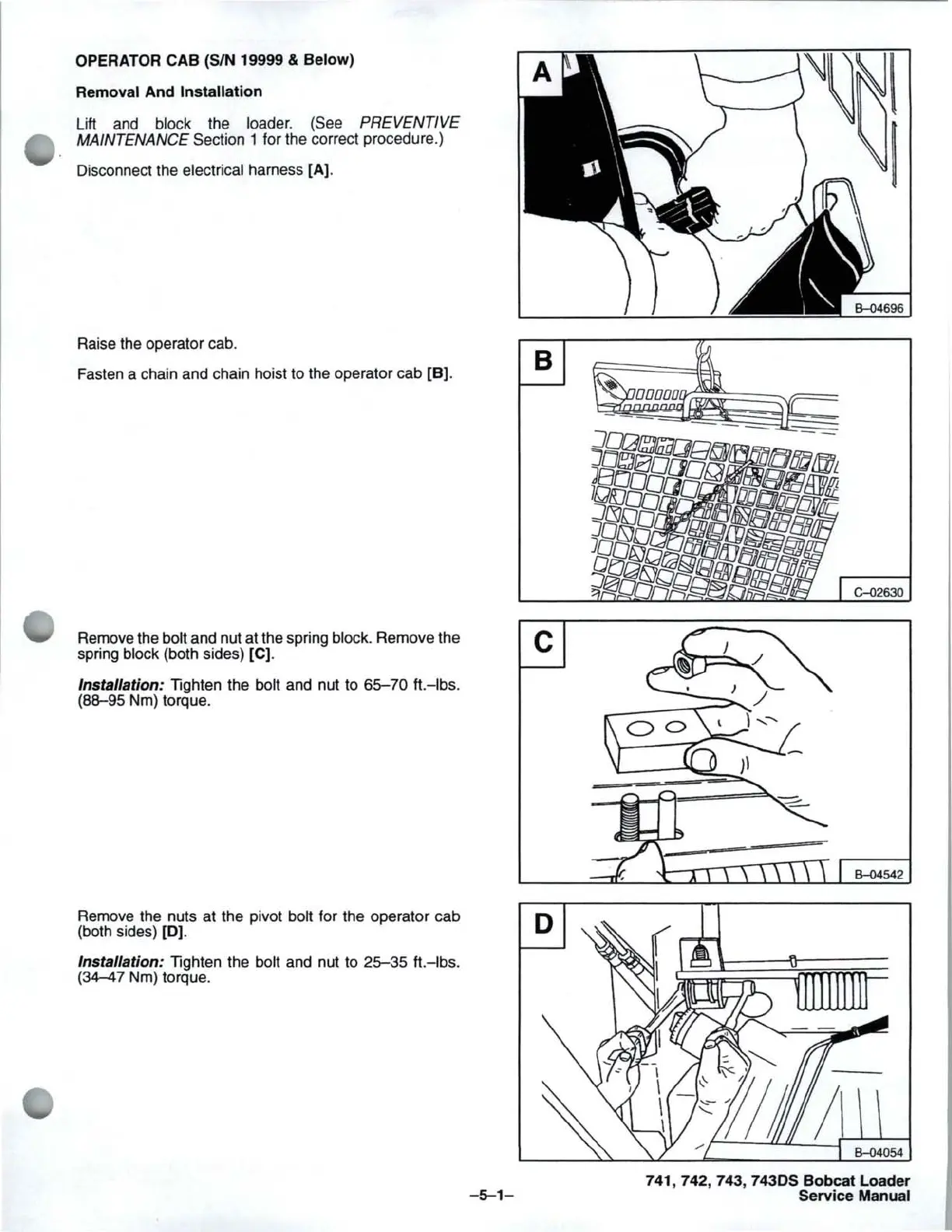

OPERATOR CAB (SIN 19999 & Below)
Removal
And Installation
Lift
and
block the loader. (See PREVENTIVE
MAINTENANCE Section 1 for the correct procedure.)
Disconnect the
electrical harness [A).
Raise the operator cab.
Fasten a chain and chain hoist to the operator cab [B).
B
Remove the bolt and nut at the spring block. Remove the C
spring block (both sides) [C).
Installation: Tighten the bolt and nut to
65-70
ft.-Ibs.
(88-95
Nm)
torque.
Remove the nuts at the pivot
bolt for the operator cab
(both sides)
[0).
Installation: Tighten the bolt and nut to
25-35
ft.-Ibs.
(34-47
Nm)
torque.
-5-1-
