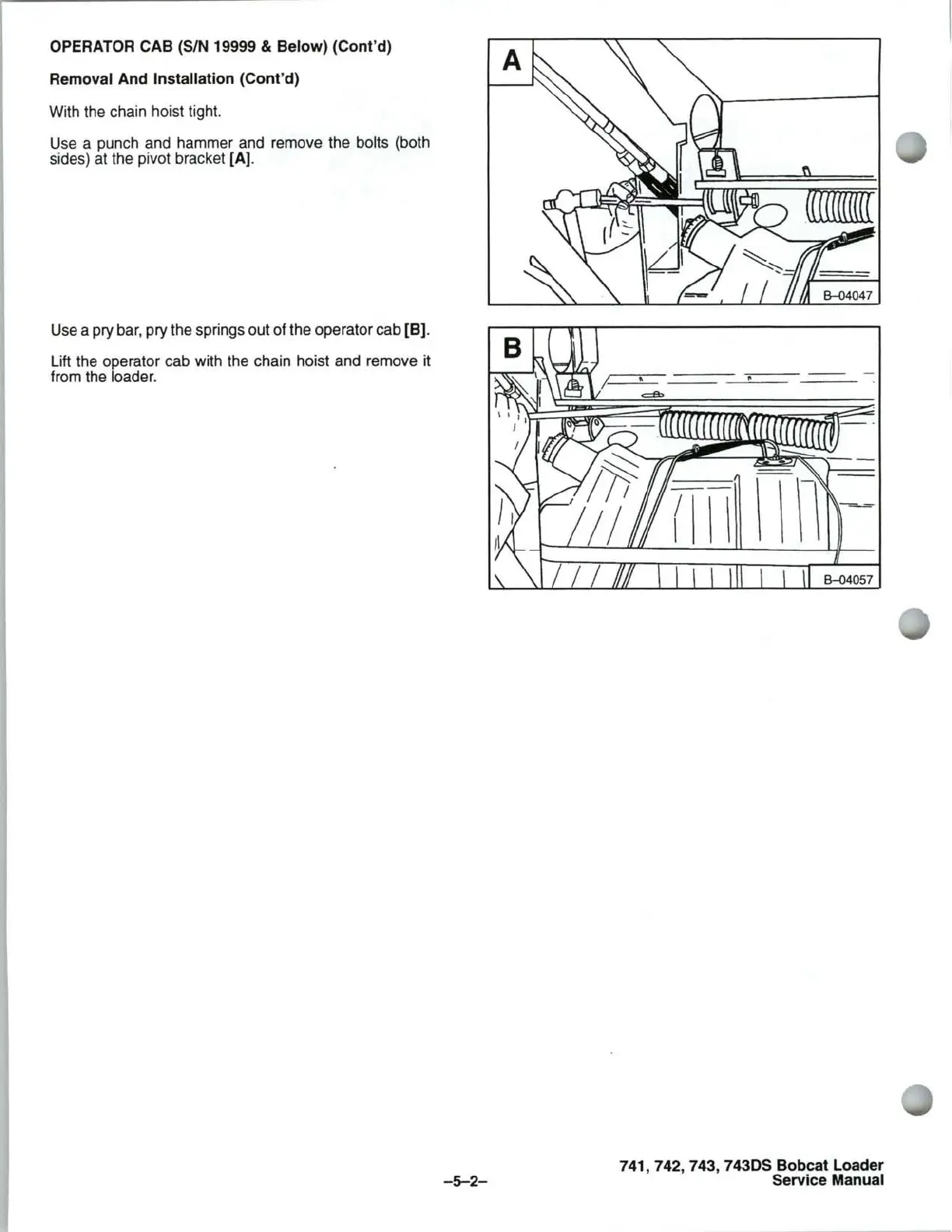

OPERATOR CAB (SIN 19999 & Below) (Cont'd)
Removal And Installation (Cont'd)
With the chain hoist tight.
Use a punch and hammer and remove the bolts (both
sides) at the pivot bracket [A).
Use a pry bar, pry the springs out of the operator cab [B).
Lift the operator cab with the chain hoist and remove it
from the
loader.
A
-5-2-
741,742,743,74305
Bobcat Loader
Service
Manual
To Next Page
