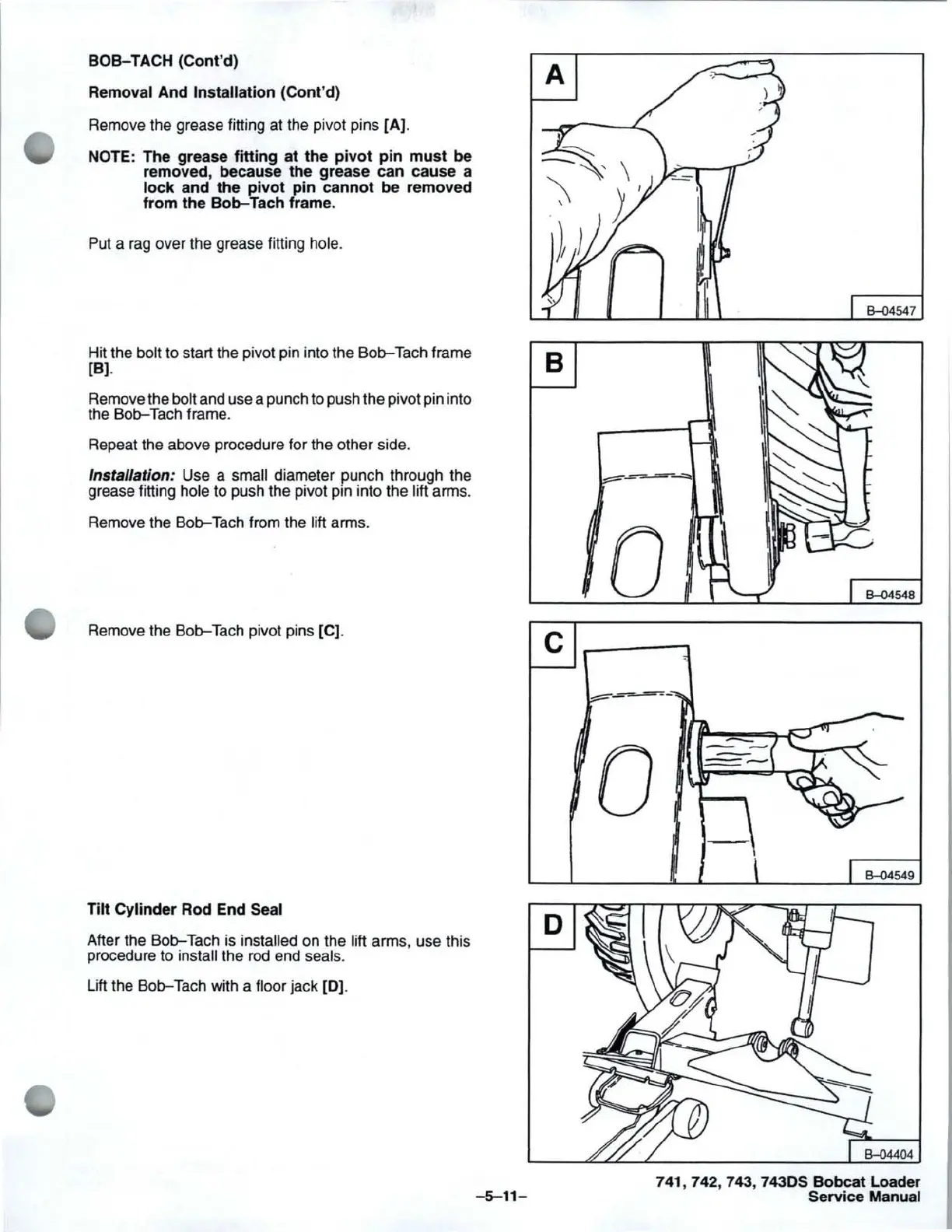

BOB-TACH (Cont'd)
Removal And Installation (Cont'd)
Remove the grease fitting at the pivot pins [A).
NOTE: The grease fitting at the pivot pin must be
removed, because the grease can cause a
lock and the pivot pin cannot be removed
from the BoRr Tach frame.
Put a rag over the grease fitting hole.
Hit the bolt to start the pivot pin into the Bob-Tach frame
[B).
Remove the bolt and use a punch to push the pivot pin into
the Bob-Tach frame.
Repeat the above procedure for the other side.
Installation: Use a small diameter punch through the
grease fitting hole to push the pivot pin into the lift arms.
Remove the Bob-Tach from the lift arms.
Remove the Bob-Tach pivot pins [C).
Tilt Cylinder Rod End Seal
After the Bob-Tach is installed on the lift arms, use this
procedure to install the rod end seals.
Lift the Bob-Tach with a floor jack [0).
B
c
D
-5-11-
8-04547
