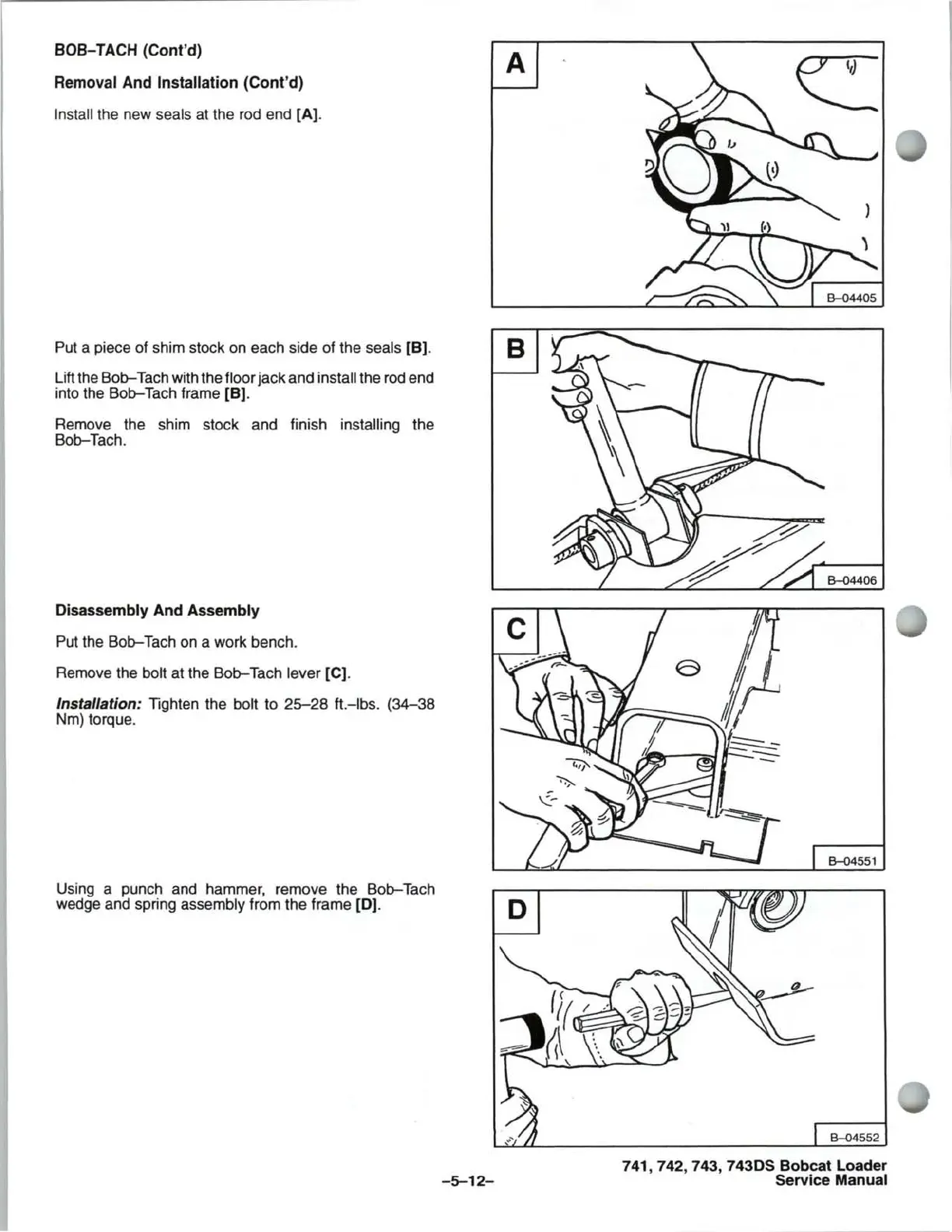

BOB-TACH (Cont'd)
A
Removal
And
Installation
(Cont'd)
Install the new seals at the rod end [A).
Put
a piece of shim stock
on
each side of the seals
[8).
B
Lift the Bob-Tach with the floor jack and install the
rod
end
into the Bob-Tach frame [8).
Remove the shim stock and finish installing the
Bob-Tach.
Disassembly And Assembly
Put
the Bob-Tach
on
a work bench.
Remove the
bolt at the Bob-Tach lever [C).
Installation: Tighten the
bolt to
25-28
ft.-Ibs.
(34-38
Nm)
torque.
Using a punch and hammer, remove the Bob-Tach
wedge and spring
assembly from the frame
[0).
