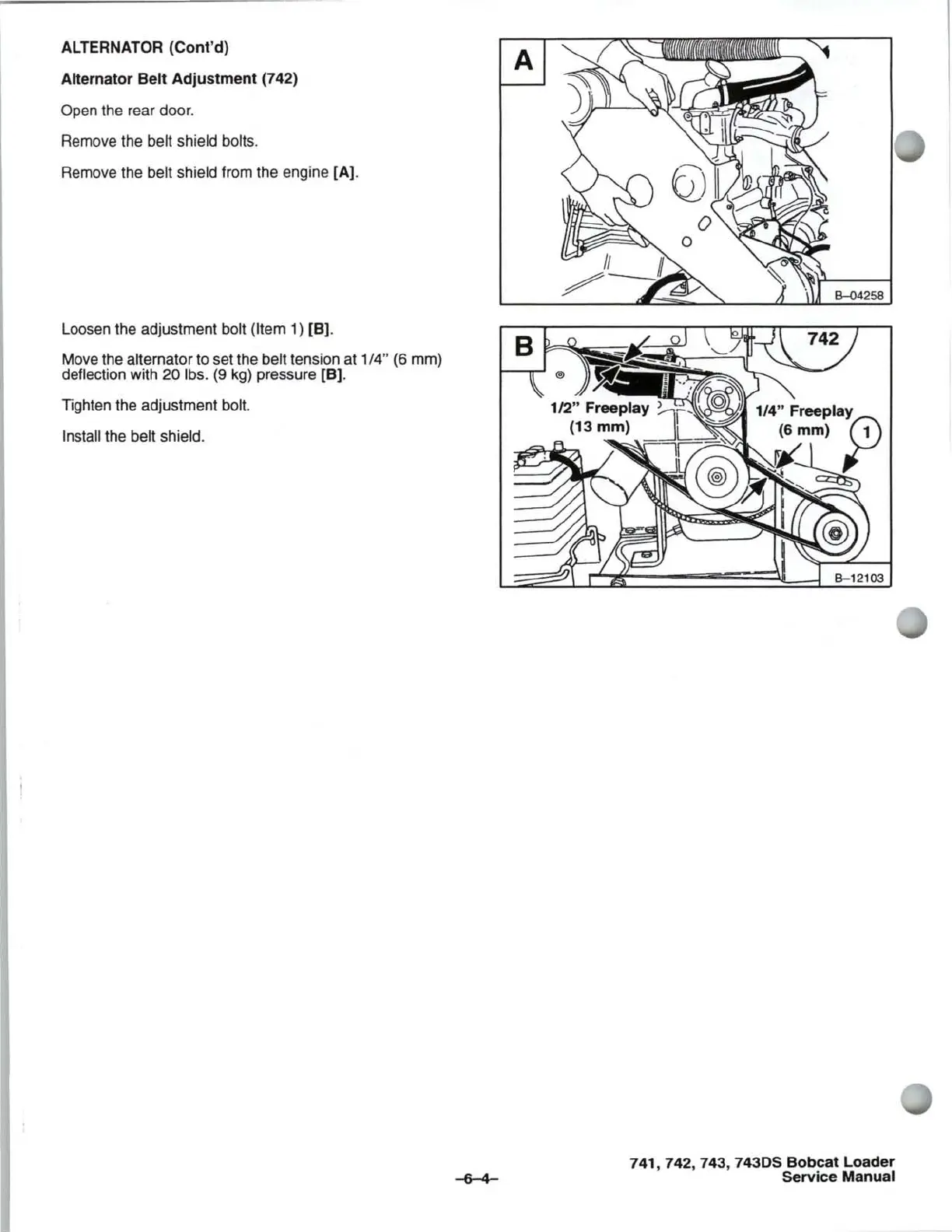

ALTERNATOR (Cont'd)
Alternator Belt
Adjustment (742)
Open the rear door.
Remove the belt shield bolts.
Remove the belt shield from the engine [A).
Loosen the adjustment
bolt (Item 1) [B).
Move the alternator to set the belt tension at
1/4" (6 mm)
deflection with
20 Ibs. (9 kg) pressure [B] .
Tighten the adjustment bolt.
Install the belt shield.
A
8-04258
741, 742, 743, 743DS Bobcat Loader
Service Manual
