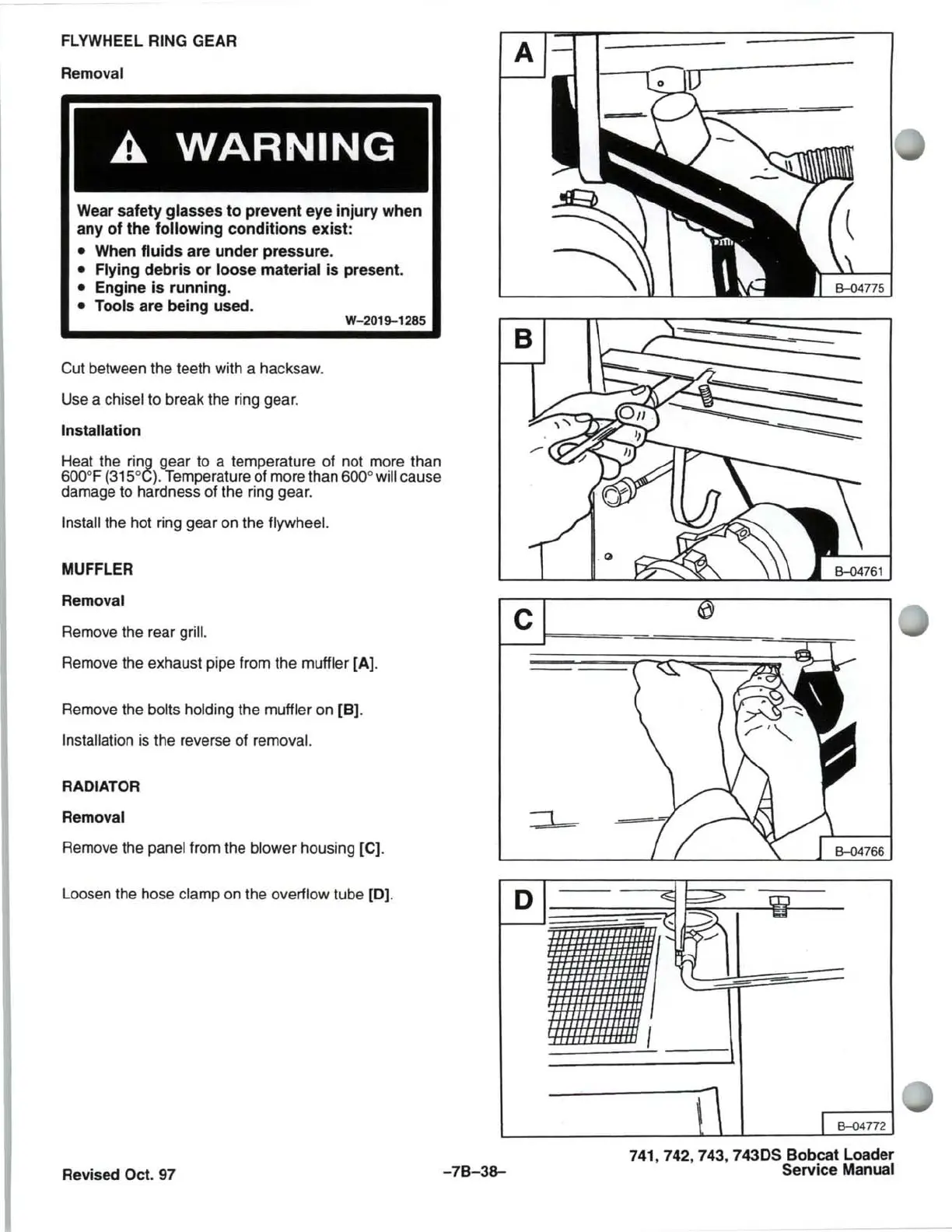

FLYWHEEL RING GEAR
Removal
A.
WARNING
Wear safety glasses
to
prevent eye
injury
when
any
of
the following
conditions
exist:
• When
fluids
are under pressure.
• Flying debris
or
loose material
is
present.
• Engine
is
running.
• Tools are being used.
Cut between the teeth with a hacksaw.
Use a
chisel to break the ring gear.
Installation
W-2019-1285
Heat the ring gear to a temperature of not more than
600°F (315°C). Temperature of more than 600° will cause
damage to hardness of the ring gear.
Install the hot ring gear on the flywheel.
MUFFLER
Removal
Remove the rear grill.
Remove the exhaust pipe from the muffler [A).
Remove the bolts holding the muffler on [B).
Installation is the reverse of removal.
RADIATOR
Removal
Remove the panel from the blower housing [C).
Loosen the hose clamp on the overflow tube
[0).
Revised Oct. 97
A
0
-7B-38-
<:::
~
CO
fr~
ID
=-=
-
I
....
t
I 8-04772
741,742,743,
7430S
Bobcat Loader
Service Manual
