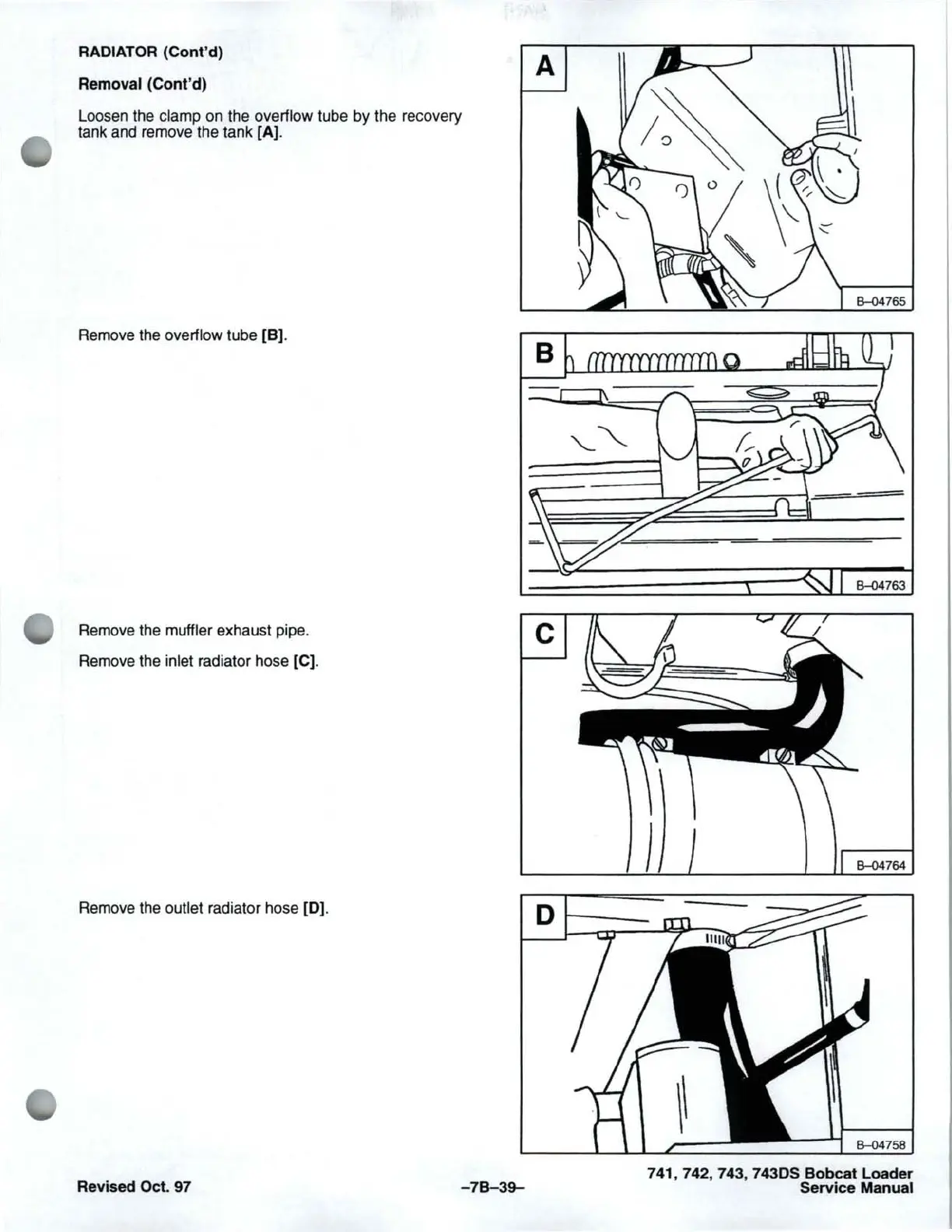

RADIATOR (Cont'd)
Removal (Cont'd)
Loosen the clamp on the overflow tube by the recovery
tank and remove the tank
[A].
Remove the overflow tube [B].
Remove the muffler exhaust pipe.
Remove the inlet radiator hose [C].
Remove the
outlet radiator hose [0].
Revised Oct. 97
-7B-3~
A
c
D r---_
741, 742, 743, 743DS Bobcat Loader
Service Manual
