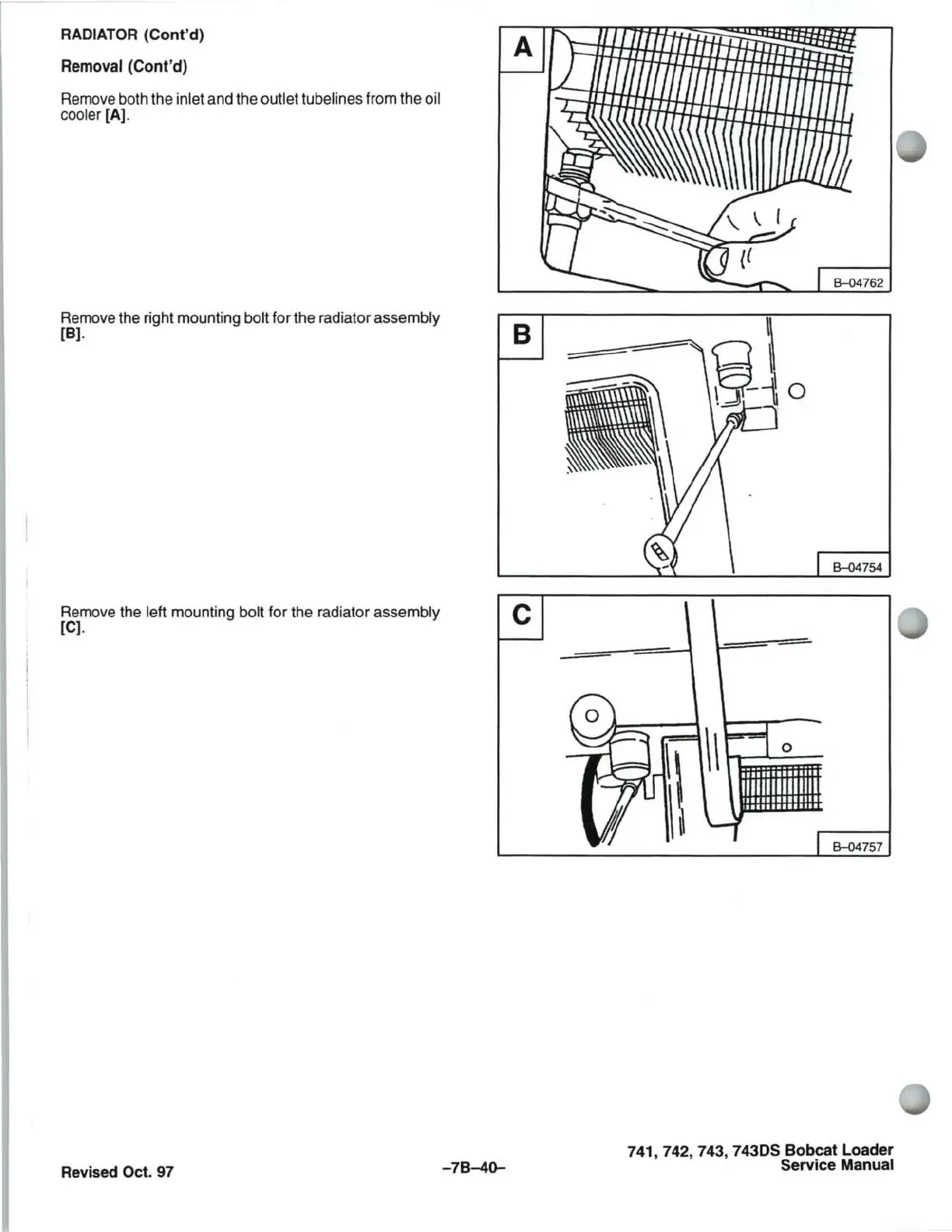

RADIATOR (Cont'd)
Removal (Cont'd)
Remove both the inlet and the outlet tubelines from the oil
cooler
[AJ.
A
Remove the right mounting bolt for the radiator assembly
~ . 8
Remove the left mounting bolt for the radiator assembly C
[C].
Revised Oct. 97
-7B-40-
8-04754
o
B-04757
741, 742, 743, 743DS Bobcat Loader
Service
Manual
