S250 Bobcat Loader
PM-30 Operation & Maintenance Manual
FAN GEARBOX
For the correct service interval (See SERVICE
SCHEDULE on Page PM-5).
Checking And Maintaining
Raise the operator cab (See Raising The Operator Cab
on Page PM-7).

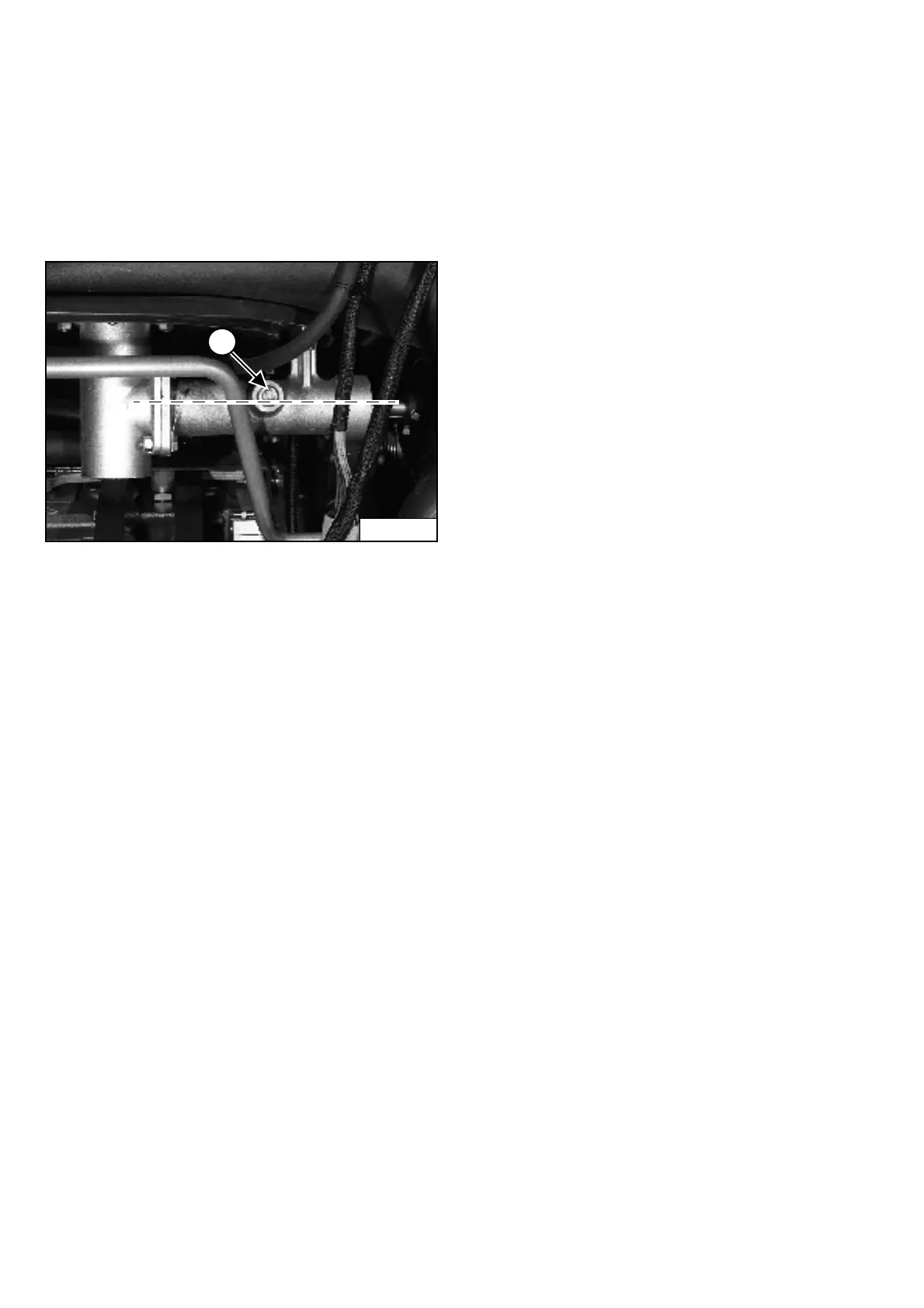

Figure PM-57
Remove the plug (Item 1) [Figure PM-57].
If the level is low, add SAE 90W gear lubricant through
the check plug hole until lubricant flows from the hole.
Install and tighten the plug.
Lower the operator cab. (See Lowering The Operator
Cab on Page PM-9.)
DRIVE BELT
Adjusting The Drive Belt
The drive belt does not need adjustment. The belt has a
spring loaded idler which is constantly adjusted.
Replacing The Drive Belt
See your Bobcat dealer for Drive Belt replacement.
N-19582
1
