S250 Bobcat Loader
PM-29 Operation & Maintenance Manual
FINAL DRIVE TRANSMISSION (CHAINCASE)
Checking And Adding Oil
The chaincase contains the final drive sprockets and
chains and uses the same type of oil as the hydraulic/
hydrostatic system (See loader specifications (S250) on
Page SPEC-3).
Stop the loader on a level surface and stop the engine.

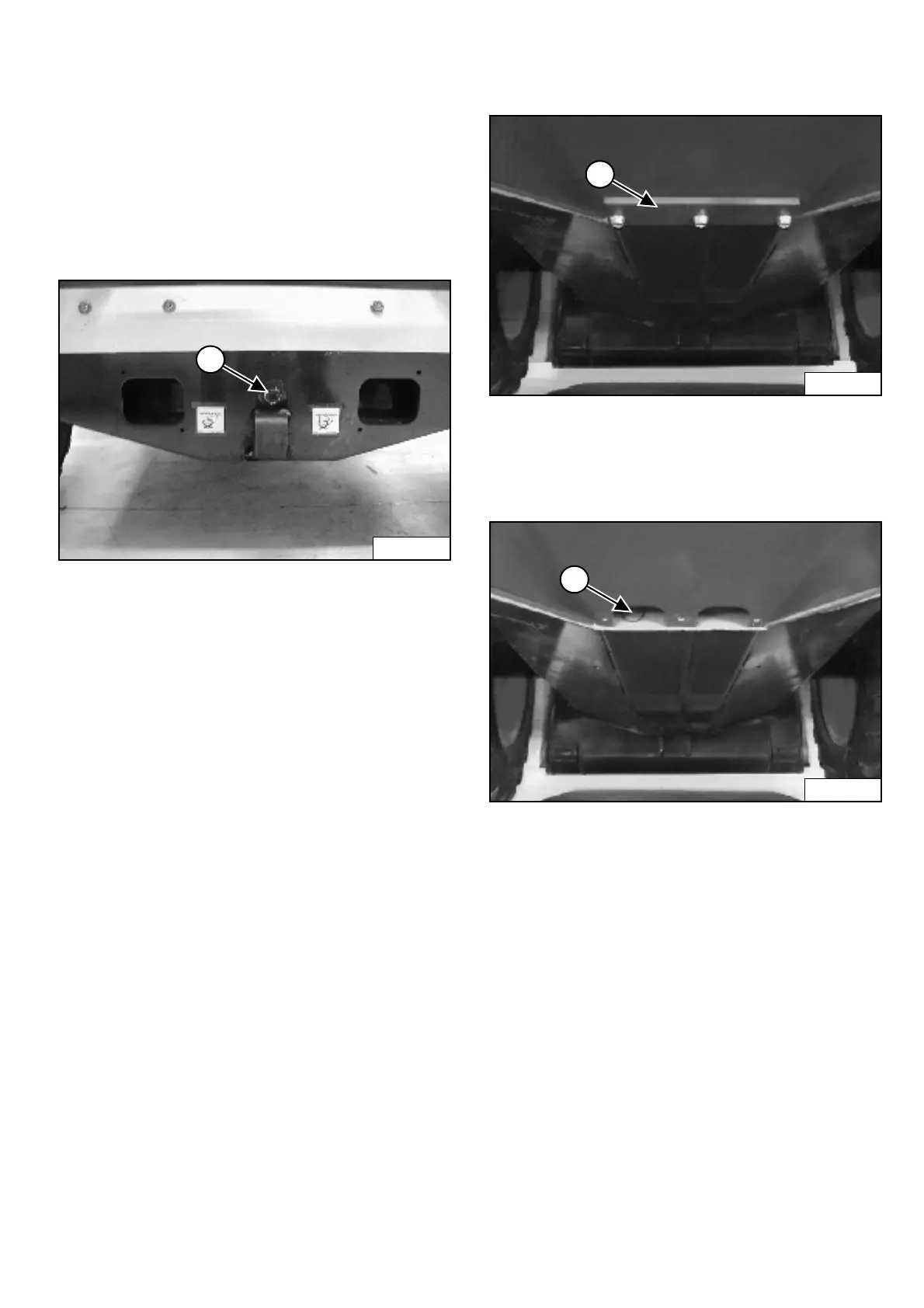

Figure PM-54
Remove the drain plug (Item 1) [Figure PM-54] from the
front of the chaincase housing.
If oil can be reached with the tip of your finger through the
hole, the oil level is correct.
If the level is low, add oil through the check plug hole until
the oil flows from the hole.
Install and tighten the plug.
Removing Oil From The Chaincase
Figure PM-55
Remove the cover (Item 1) [Figure PM-55] which is
installed over the drain plug at the bottom rear of the
chaincase.
Figure PM-56
Remove the drain plug (Item 1) [Figure PM-56] and drain
the oil into a container.
Dispose of the used oil in an environmentally safe
manner.
Install and tighten the plug.
Check the condition of the drain plug and replace as
necessary.
1
P-31287
P-1616
1
P-1619
1
