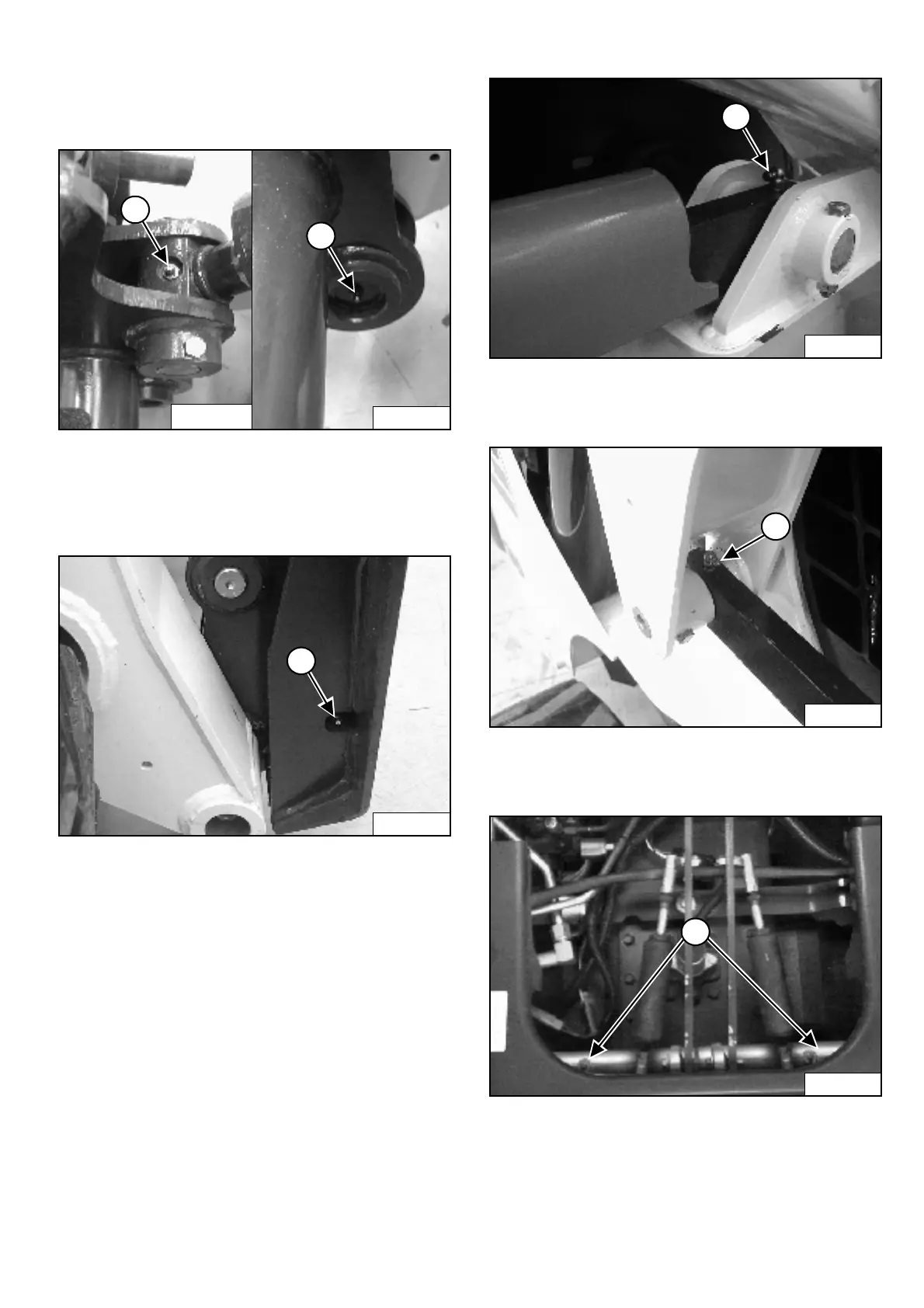

LUBRICATING THE BOBCAT LOADER (CONT’D)
Lubrication Locations (Cont’d)
Figure PM-67
6. Rod End Tilt Cylinder (Both Sides) [Figure PM-67].
7. Bob-Tach Pivot Pin (Both Sides) [Figure PM-67].
Figure PM-68
8. Bob-Tach Wedge (Both Sides) [Figure PM-68].
Figure PM-69
9. Control Link (Both Sides) [Figure PM-69].
Figure PM-70
10. Control Link (Both Sides) [Figure PM-70].
Figure PM-71
11. 250 Hours: Steering Lever Shaft (2) [Figure PM-71].
