Bobcat s250 - Pivot Pins; Pivot Pin Inspection and Maintenance

S250 Bobcat Loader
PM-34 Operation & Maintenance Manual
PIVOT PINS
Inspection And Maintenance

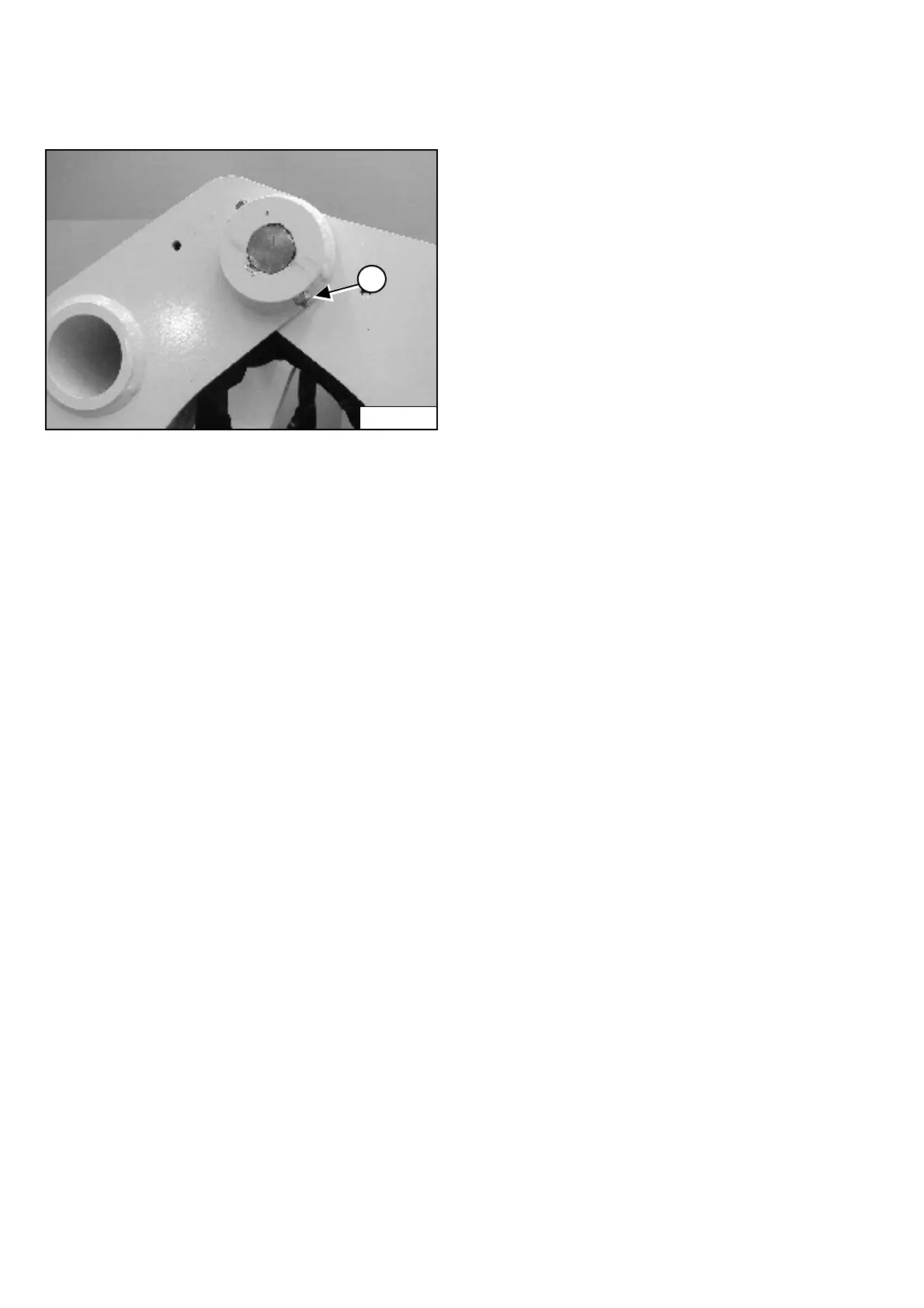

Figure PM-72
All lift arm and cylinder pivots have a large pin held in
position with a retainer bolt and lock nut (Item 1)
[Figure PM-72].
Check that the lock nuts are tightened to 24-27 Nm
torque.
P-31309
1
