S250 Bobcat Loader
PM-35 Operation & Maintenance Manual
BOB-TACH (HAND LEVER)
Inspection And Maintenance

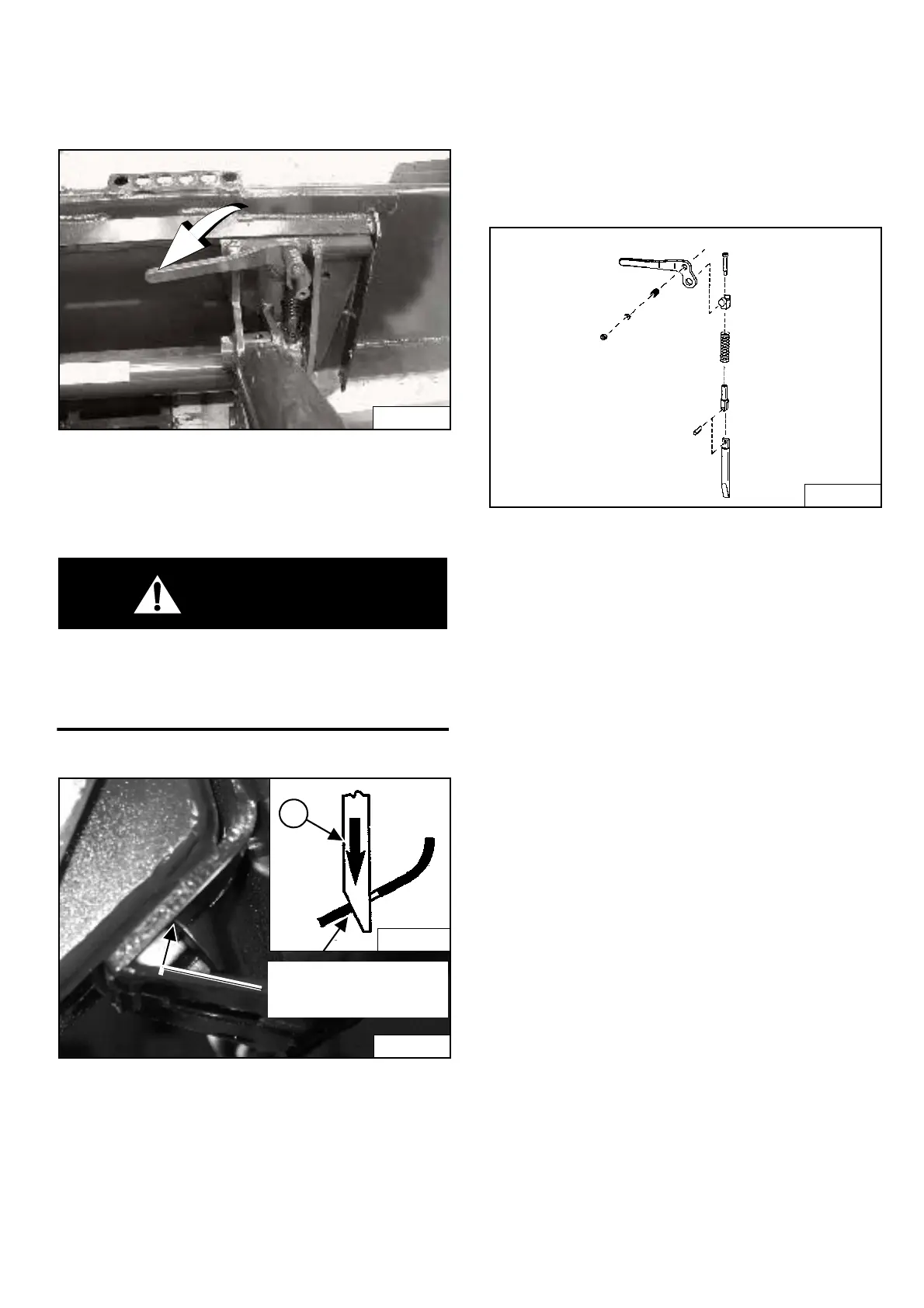

Figure PM-73
Move the Bob-Tach levers down to engage the wedges
[Figure PM-73].
The levers and wedges must move freely.
WARNING
Bob-Tach wedges must extend through the holes in
attachment. Levers must be fully down and locked.
Failure to secure wedges can allow attachment to
come off and cause injury or death.
W-2102-0588
Figure PM-74
The wedges (Item 1) [Figure PM-74] must extend
through the holes in the attachment mounting frame.
The spring loaded wedge (Item 1) [Figure PM-74] must
contact the lower edge of the hole in the
attachment (Item 2) [Figure PM-74].
If the wedge does not contact the lower edge of the hole
[Figure PM-74], the attachment will be loose and can
come off the Bob-Tach.
Figure PM-75
Inspect the mounting frame on the attachment and
Bob-Tach, linkages and wedges for excessive wear or
damage [Figure PM-75]. Replace any parts that are
damaged, bent or missing. Keep all fasteners tight.
Look for cracked welds. Contact your Bobcat dealer for
repair or replacement parts.
Lubricate the wedges (See SERVICE SCHEDULE on
Page PM-5) and (See LUBRICATING THE BOBCAT
LOADER on Page PM-32).
P-31693
P-31233
1
B-15177
Wedge must contact
lower edge of hole in the
attachment.
B-17460
