S250 Bobcat Loader
OI-22 Operation & Maintenance Manual
HYDRAULIC CONTROLS (CONT’D)
High-Flow Hydraulics Operation (If Equipped)

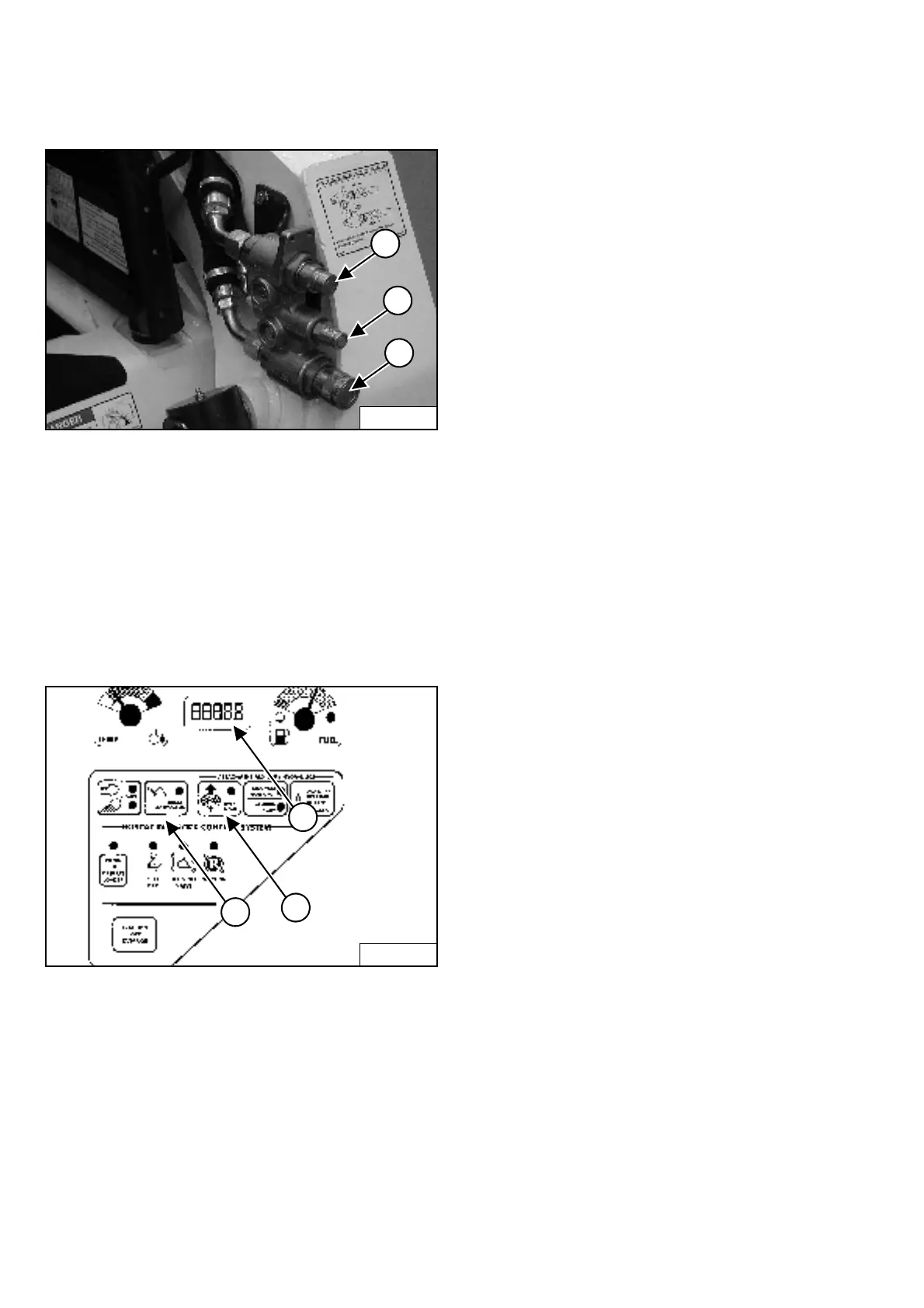

Figure OI-37
The High-Flow function provides additional flow to the
system to operate an attachment which requires more
hydraulic flow. (EXAMPLE: Planer.)
Connect the attachment to the quick couplers (Item 1)
[Figure OI-37].
Some attachments may have a case drain which needs
to be connected to the small quick coupler (Item 2)
[Figure OI-37].
Figure OI-38
Press the HIGH FLOW button (Item 1) [Figure OI-38].
P-31242
1
1
2
B-15551
1
2
3
