S250 Bobcat Loader
OI-35 Operation & Maintenance Manual
ATTACHMENTS AND BUCKETS (CONT’D)
Hand Lever Bob-Tach - Installing The Bucket Or
Attachment (Cont’d)
WARNING
Before you leave the operator’s seat:
• Lower the lift arms, put the attachment flat on the
ground.
• Stop the engine.
• Engage the parking brake.
• Raise seat bar.
• (Foot Pedal Controls) Move pedals until both
lock.
• (Advanced Control System - ACS) Move the
hydraulic controls to the NEUTRAL POSITION to
make sure that both lift and tilt functions are
deactivated.
The seat bar system must deactivate the lift and tilt
control functions when the seat bar is up. Service the
system if hand controls do not deactivate.
• (Selectable Joystick Control - SJC) Move the
joysticks to the NEUTRAL POSITION to make
sure that travel and hydraulic functions are
deactivated.
The seat bar system must deactivate these functions
when the seat bar is up. Service the system if
controls do not deactivate.
W-2463-0603

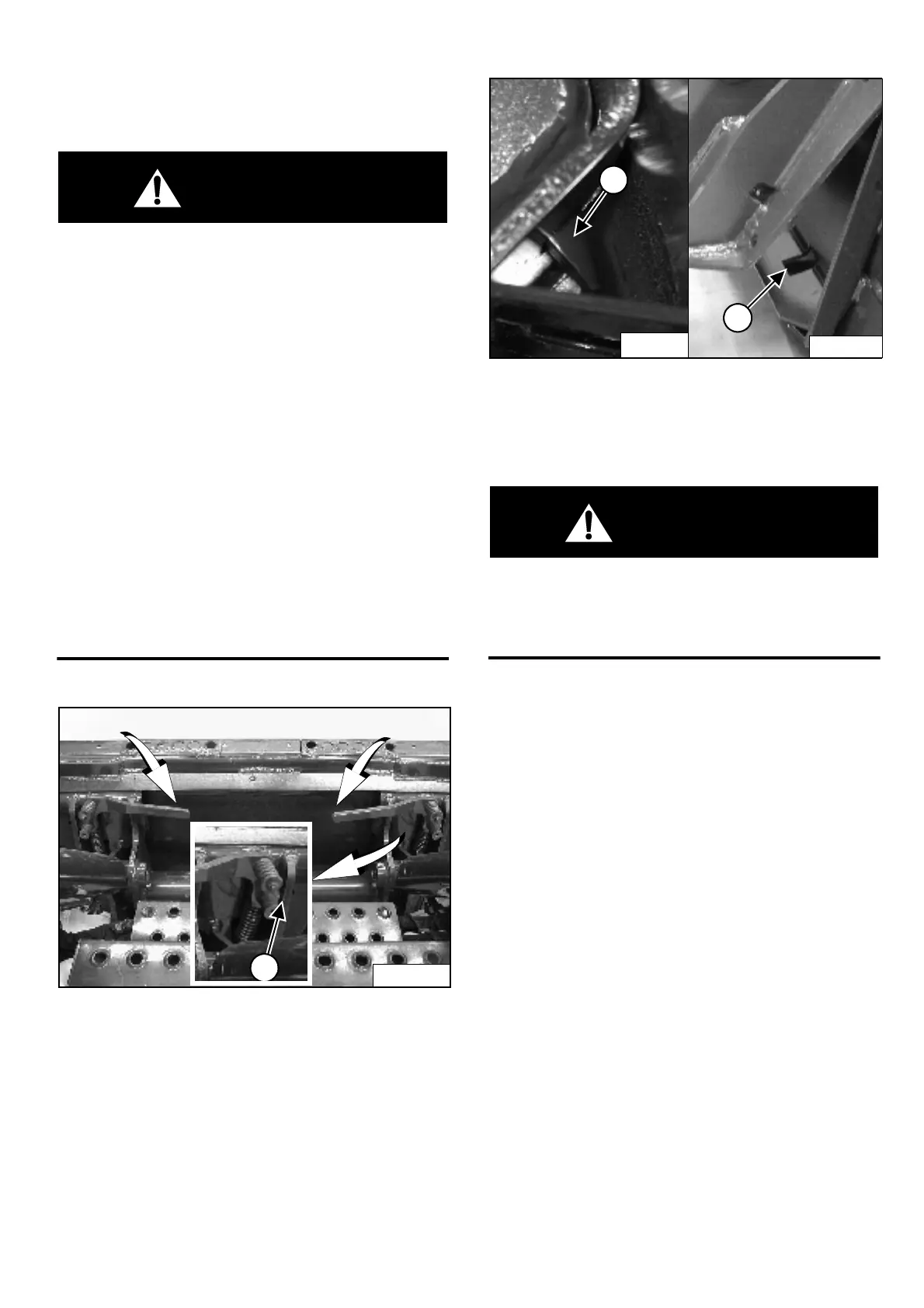

Figure OI-65
Push down on the Bob-Tach levers until they are fully
engaged in the locked position (Item 1) [Figure OI-65]
(wedges fully extended).
Figure OI-66
The wedges (Item 1) [Figure OI-66] must extend through
the holes (Item 2) [Figure OI-66] in the mounting frame
of the bucket (or other attachment), securely fastening
the bucket to the Bob-Tach.
WARNING
Bob-Tach wedges must extend through the holes in
attachment. Levers must be fully down and locked.
Failure to secure wedges can allow attachment to
come off and cause injury or death.
W-2102-0588
P-31241
1
P-31233
1
P-31237
2
