S250 Bobcat Loader
OI-37 Operation & Maintenance Manual
ATTACHMENTS AND BUCKETS (CONT’D)
Power Bob-Tach - Installing The Bucket Or
Attachment
The Bob-Tach is used for fast changing of buckets and
attachments. See the appropriate Attachment Operation
& Maintenance Manual to install other attachments.
Perform the PRE-STARTING PROCEDURE (See
PRE-STARTING PROCEDURES on Page OI-25).
Lower the lift arms and tilt the Bob-Tach forward.

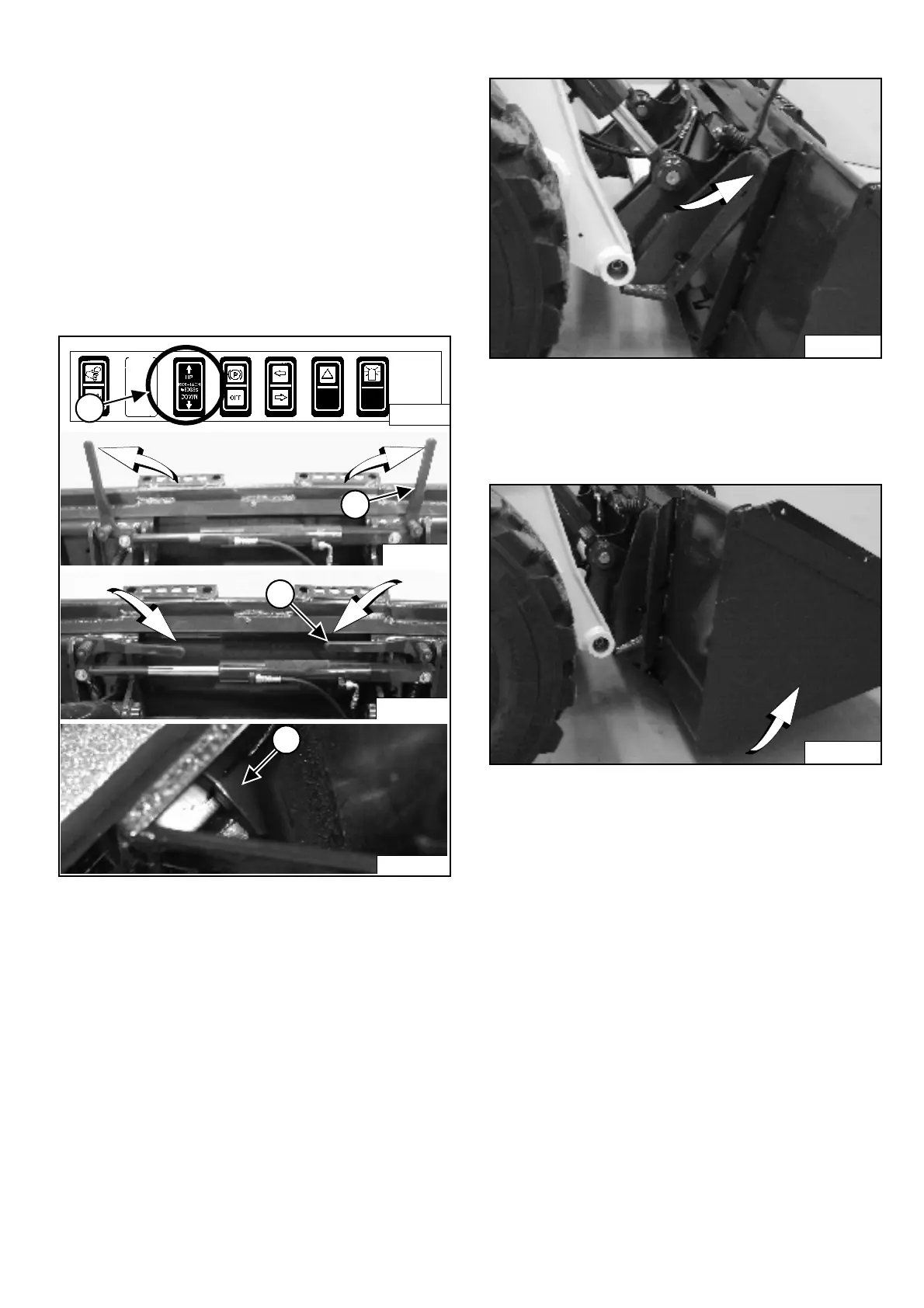

Figure OI-69
Push and hold BOB-TACH “WEDGES UP” switch
(Item 1) [Figure OI-69] (Front Accessory Panel) until
levers (Item 2) are in unlocked position (wedges fully
raised).
NOTE: The Power Bob-Tach system has continuous
pressurized oil to keep the wedges in the
engaged position and prevent attachment
disengagement. Because the wedges can
slowly lower, the operator may need to
reactivate the switch (WEDGES UP) before
installing an attachment to be sure both
wedges are fully reised before installing the
attachment.
Figure OI-70
Drive the loader forward until the top edge of the
Bob-Tach is completely under the top flange of the bucket
[Figure OI-70] (or other attachment).
Figure OI-71
Tilt the Bob-Tach backward until the cutting edge of the
bucket (or other attachment) is slightly off the ground
[Figure OI-71].
Push and hold BOB-TACH “WEDGES DOWN” switch
(Front Accessory Panel) [Figure OI-69] until levers are
fully engaged in the locked position (wedges fully
engaged).
The wedges (Item 4) [Figure OI-69] must extend through
the holes in the mounting frame of the bucket (or other
attachment), securely fastening the bucket to the
Bob-Tach.
P-31236
2
P-31235
3
1
P-31233
4
P-31233
B-15993
P-31231
P-31232
