120 S650 Operation & Maintenance Manual
OPERATING PROCEDURE (CONT’D)
Digging And Filling A Hole (SJC - ‘ISO’ Pattern)
Digging

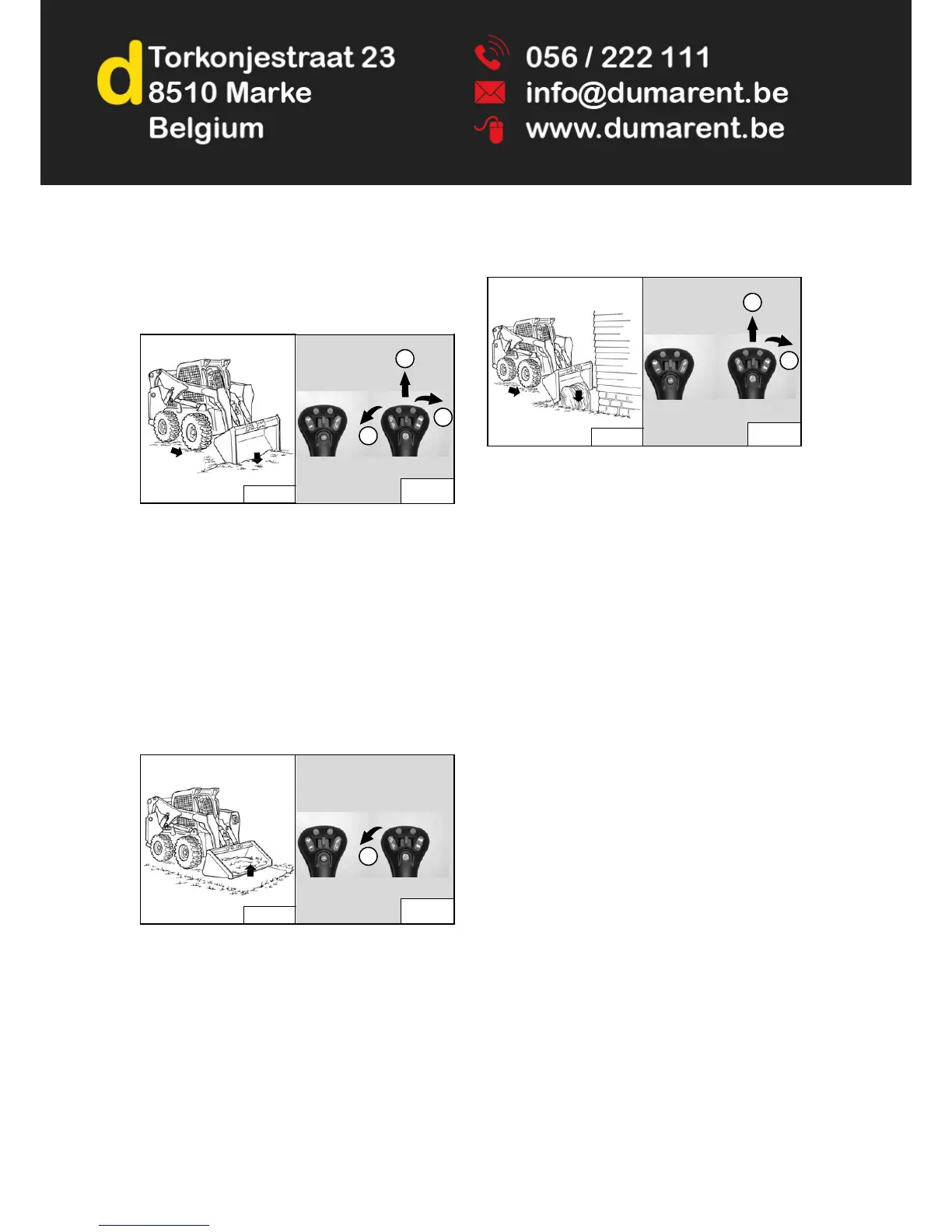

Figure 168
Lower the lift arms all the way (Item 1) [Figure 168]. Put
the cutting edge of the bucket on the ground (Item 2)
[Figure 168].
Drive forward slowly and continue to tilt the bucket down
(Item 2) [Figure 168] until it enters the ground.
Tilt the bucket backward a small amount (Item 3)
[Figure 168] to increase traction and keep an even
digging depth. Continue to drive forward until the bucket
is full. When the ground is hard, raise and lower the
cutting edge (Items 2 and 3) [Figure 168] while driving
forward.
Figure 169
Tilt the bucket backward (Item 1) [Figure 169] as far as it
will go when the bucket is full.
Filling
Figure 170
Lower the lift arms (Item 1) [Figure 170] and put the
cutting edge of the bucket on the ground (Item 2)
[Figure 170]. Drive forward to the edge of the hole to
push the material into the hole.
Tilt the bucket forward (Item 2) [Figure 170] as soon as it
is past the edge of the hole.
If necessary, raise the lift arms to empty the bucket.
NA1691
P-24820
P-24802
3
2
1
NA1685
P-24820
P-24802
1
NA1692
2
P-24820
P-24802
1
